Fig. 3.
Download original image

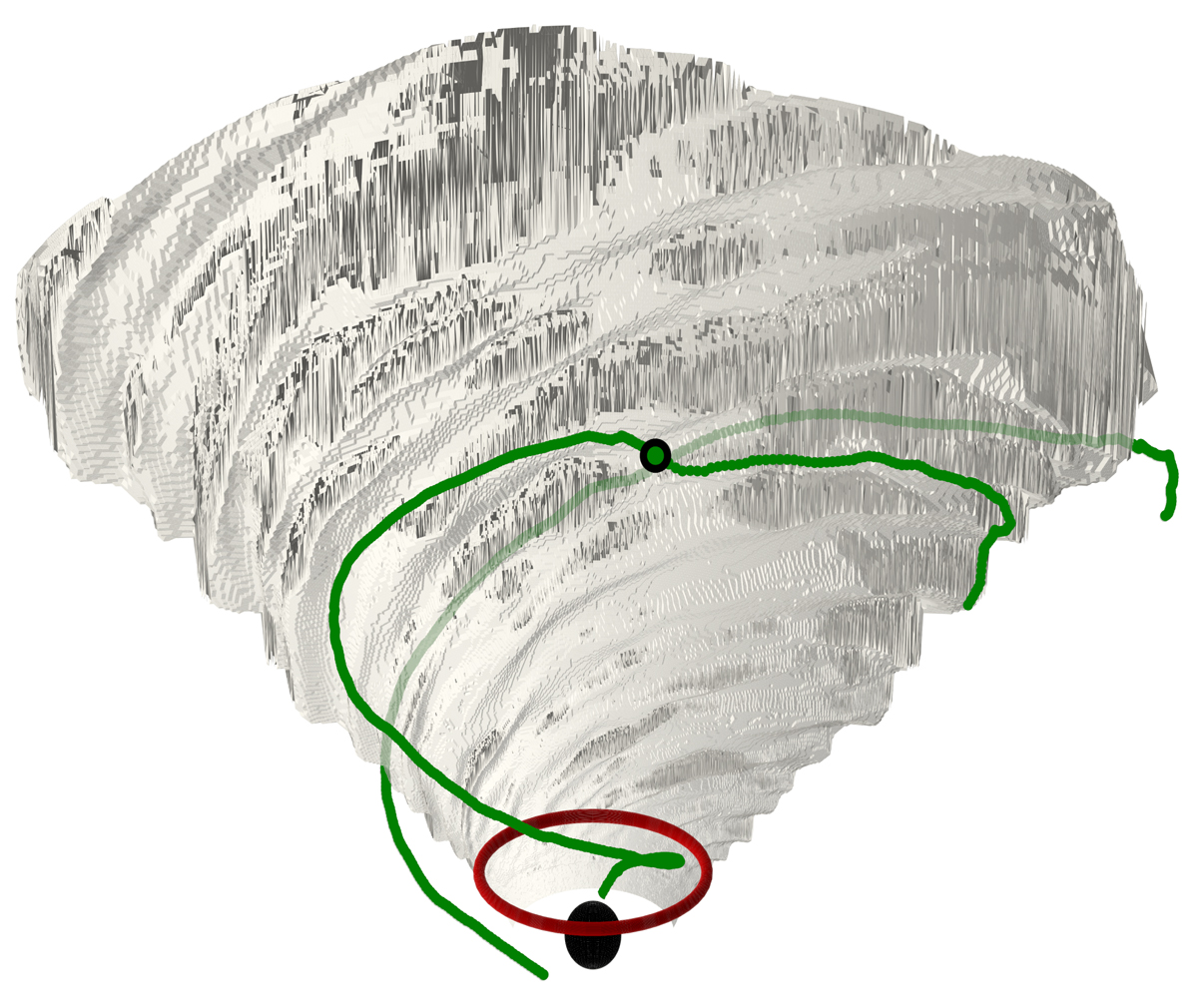

Magnetic field lines (solid green) reconnecting across the current layer. The corresponding X-point, where magnetic field lines are antiparallel, is the green dot with a black edge. The polarity of the toroidal magnetic field reverses across the white surface. The red annulus is the Y-ring and the black sphere is the event horizon.
