Fig. 12

Download original image

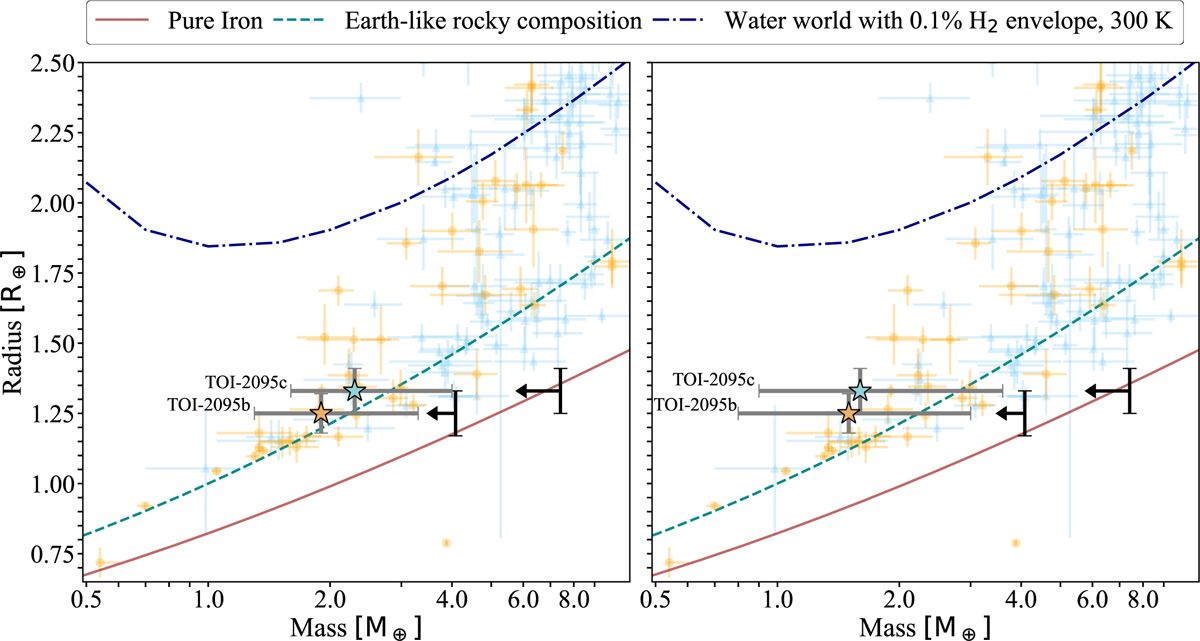

Mass-radius diagramofall known transiting exoplanets taken from TepCat(Southworth 2011). Theupperlimits forthe masses of TOI-2095b and TOI-2095c derived from RV measurements (Mb < 4.1 M⊕ and Mc < 7.4 M⊕ respectively) are delimited by the black arrows. The predicted masses and uncertainties for TOI-2095b and TOI-2095c computed with the mass-radius relations of Chen & Kipping (2017, left) and Kanodia et al. (2019, right) are marked by the yellow and light blue star respectively. We show planets with P < 30 days and with mass determinations with an uncertainty better than 30%. Planets around stars with Teff ≤ 4000 K and Teff > 4000 K are marked by orange circles and blue triangles, respectively. The lines represent the composition models of Zeng et al. (2016, 2019) for pure iron cores (100% Fe, brown solid line), Earth-like rocky compositions (32.5% Fe plus 67.5% MgSiO3, dash green line), and a water world (0.1% H2 envelope plus 49.95% Earth-like rocky core plus 49.95% H2O, dash-dotted blue line).
