Fig. A.1.
Download original image

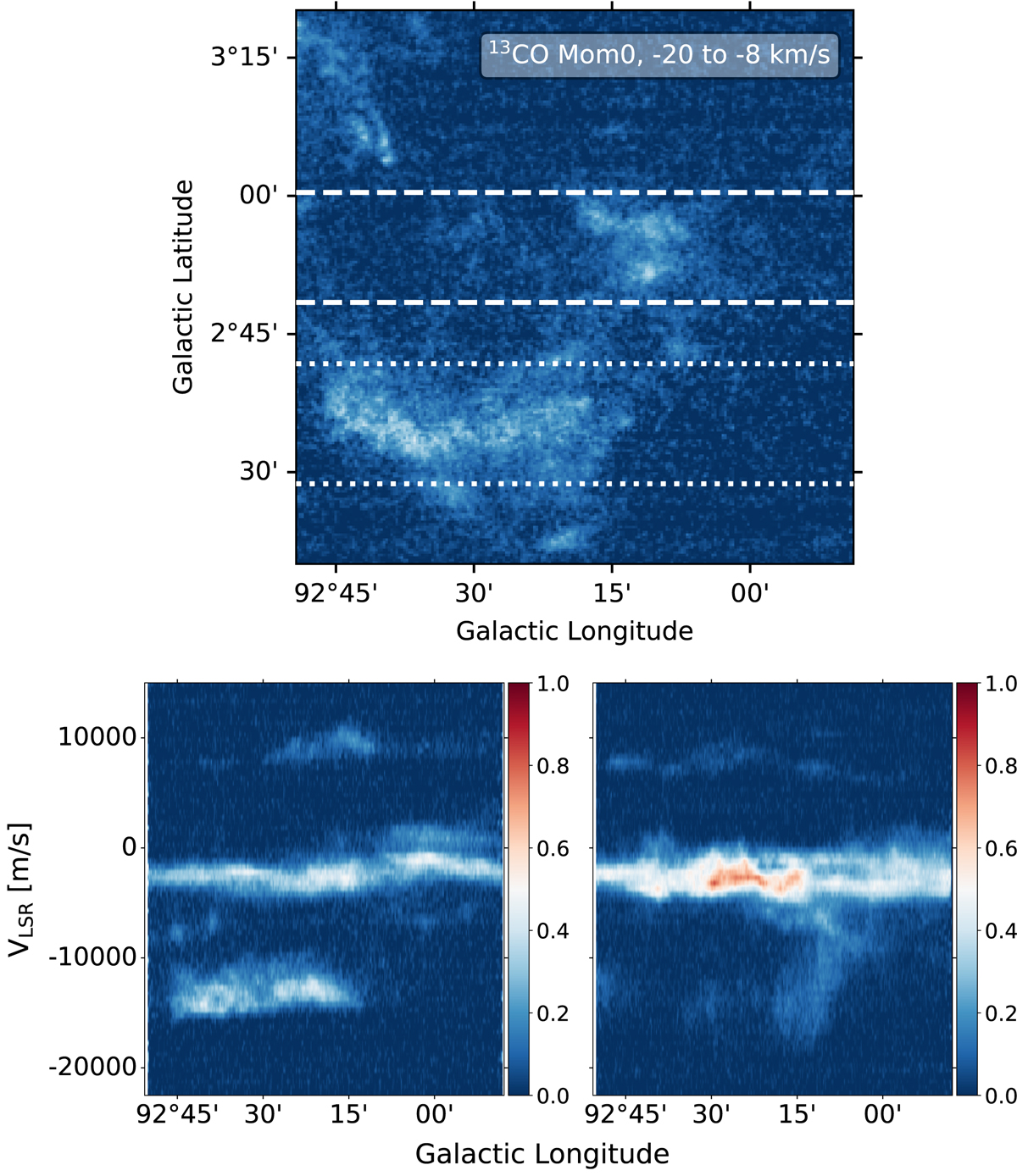

13CO map from Fig. 3 top panel. The dashed and dotted rectangles indicate the ranges in the J2108– and HS– cloud positions respectively, where the galactic longitude as function of the VLSR map is obtained: HS–cloud (bottom left) and J2108–cloud (bottom right). Three gas patches (C1 bottom, C2 middle and C3 top) are observed. Colour–bar units are K deg.
