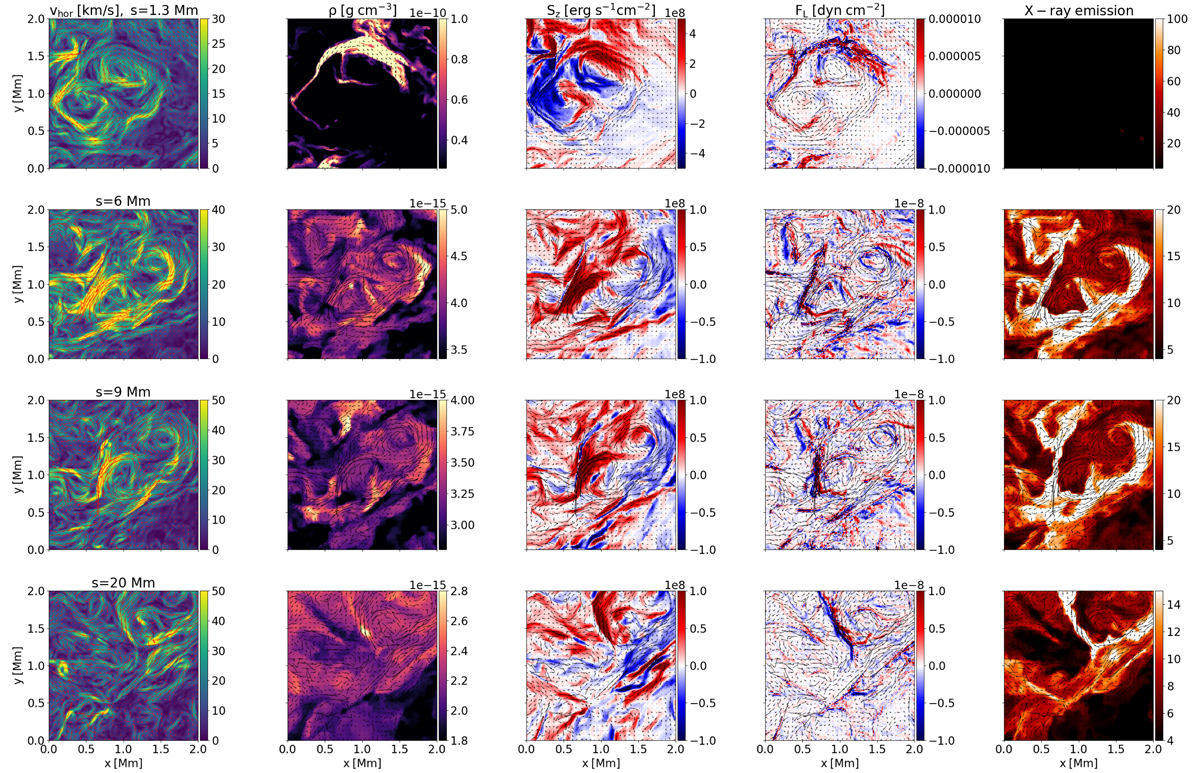

Cuts perpendicular to the loop axis at different distances to the photospheric layer along the loop arclength. Details same as in Fig. 7, but for a different case at a time of 5.17 min. From left to right: Velocity perpendicular to the loop axis, density, axial component of the Poynting flux, axial component of the Lorentz force, and X-ray emission. From the top to the bottom row, cuts are shown at values of the axial coordinate s of 1.3 Mm, 6 Mm, 10 Mm and 20 Mm. The arrows show direction and magnitude of the velocity field. The units of the X-ray emission are .
