Fig. 1
Download original image

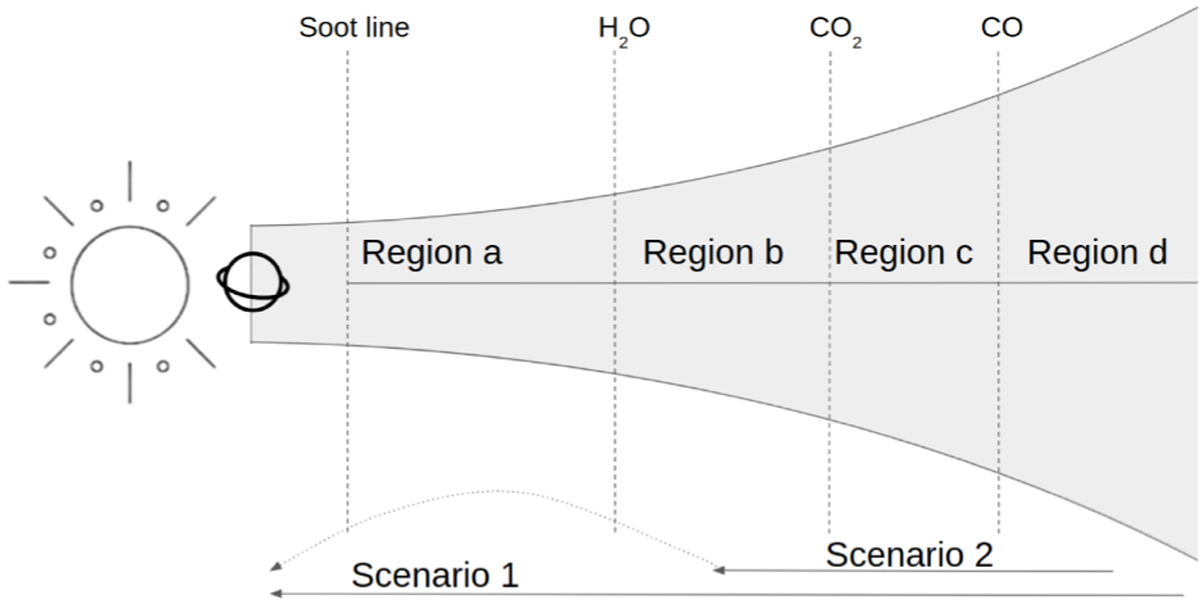

Different regions in the disk with respect to the ice lines. Arrows on the bottom of the disk show a schematic of the migration path for the two scenarios considered in this study. The planet shows the current position of WASP-77Ab. The ice line locations as well as the planet location is not representing the actual distance from the host star.
