Fig. 1.


Download original image

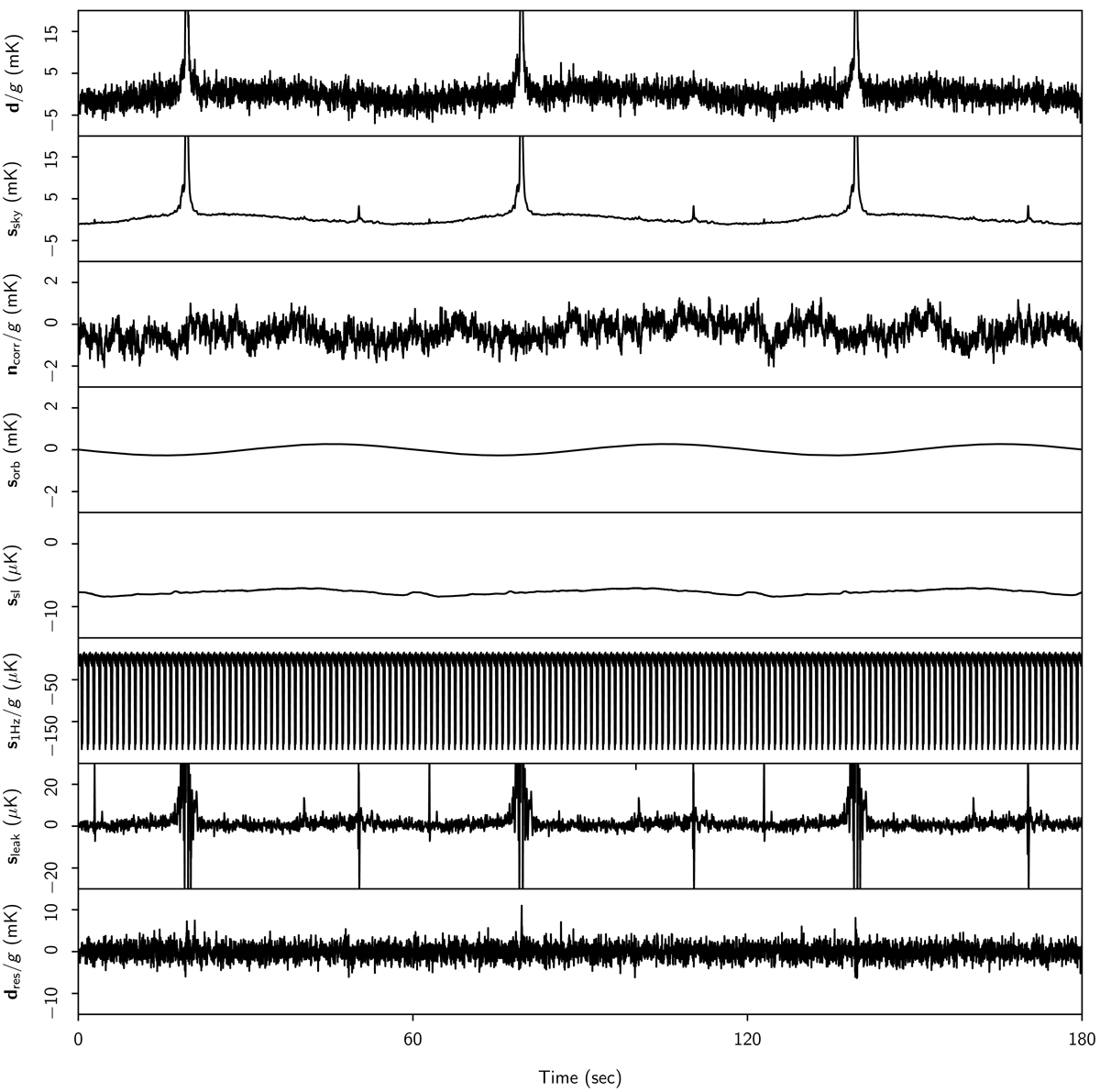

Time-ordered data segment for the 30 GHz LFI 27M radiometer. From top to bottom, the panels show 1) raw calibrated TOD, d/g; 2) sky signal, ssky; 3) calibrated correlated noise, ncorr/g; 4) orbital CMB dipole signal, sorb; 5) sidelobe correction, ssl; 6) electronic 1 Hz spike correction, s1 Hz; 7) leakage mismatch correction, sleak; and 8) residual TOD, dres = (d − ncorr − s1 Hz)/g − ssky − sorb − sleak − ssl.
