Fig. 3

Download original image

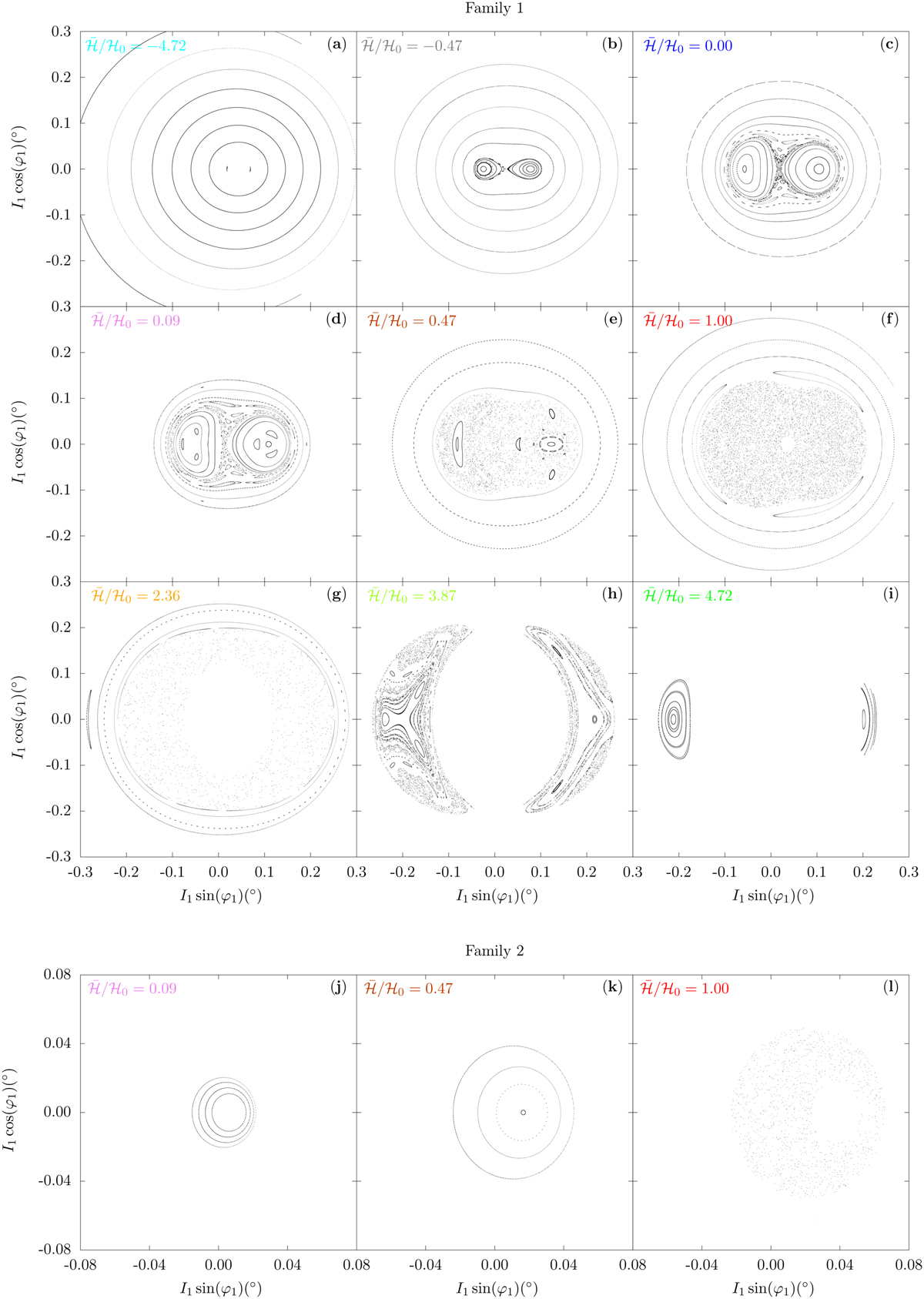

Poincaré surfaces of section for Ariel in the plane (I1 sin φ1,I1 cos φ1) with cos φ2 = 0 and δ = −2 × 10−6. Each panel was obtained with a different energy value, corresponding to the energy levels shown in Fig. 2c (we adopted the same colour code), and ℋ0 = 1.06 × 10−19 M⊙ au2 yr−2.
