Fig. 2


Download original image

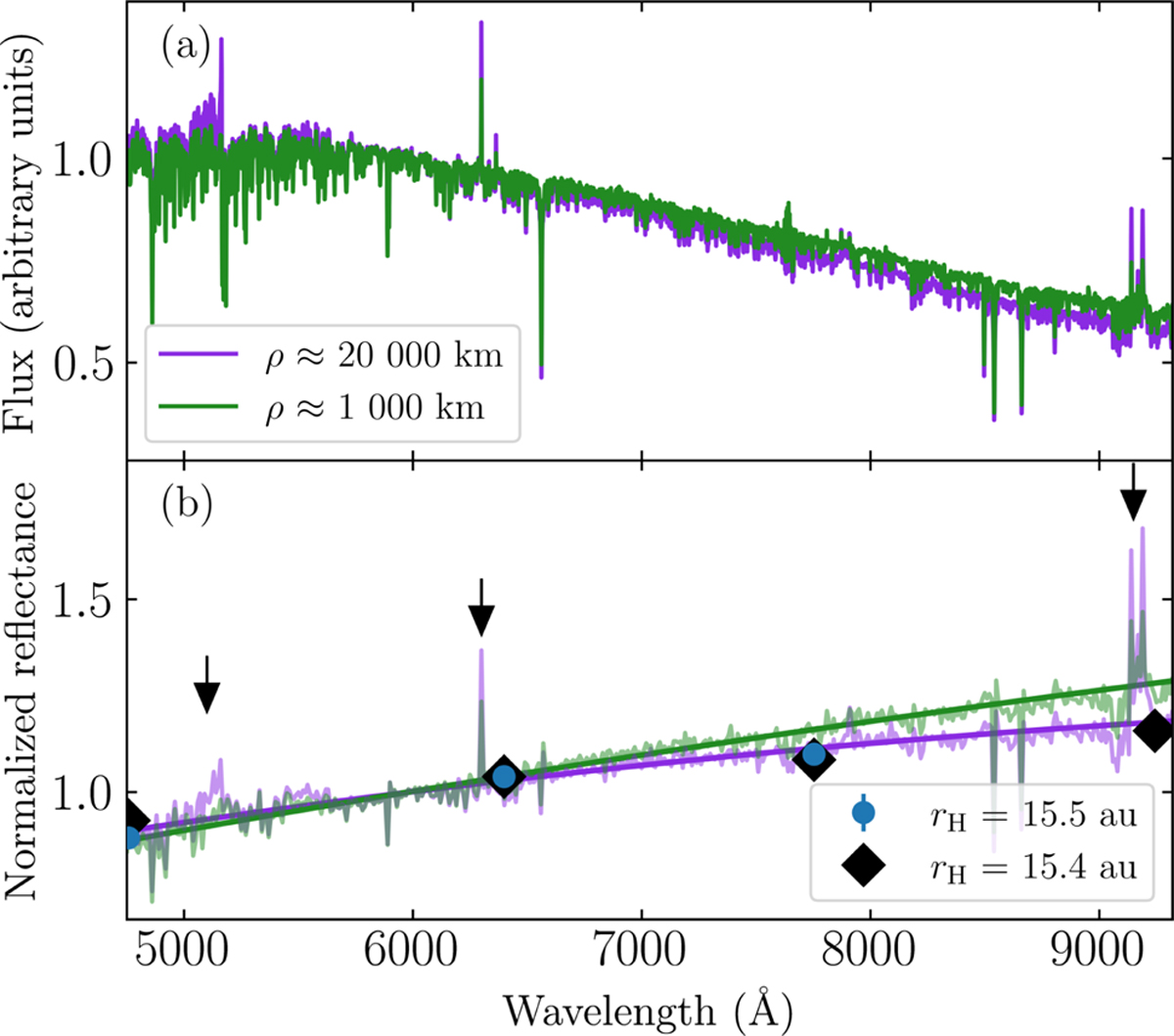

Spectral information of K2 extracted over two different aperture radii. (a) Unbinned spectrum of the K2 coma (with a step of 1.25 Å) extracted over smaller (corresponding to the cometocentic distance ρ of ≈103 km; green) and larger (ρ ≈ 2 × 104 km; purple) radius circular apertures. (b) Relative reflectance of K2 normalized at 6000 Å. Its spectra are binned to match the spectral resolution (5 Å) of the solar spectrum. Three arrows indicate significant emission features of gas species: the C2(0,0) band at ~5100 Å, the OI1D line at 6300 Å, and the CN(1,0) red band at ~9200 Å. The circles and diamonds are the data of K2 taken at rH ~15.5 and ~15.4 au, respectively (Meech et al. 2017).
