Fig. 4

Download original image

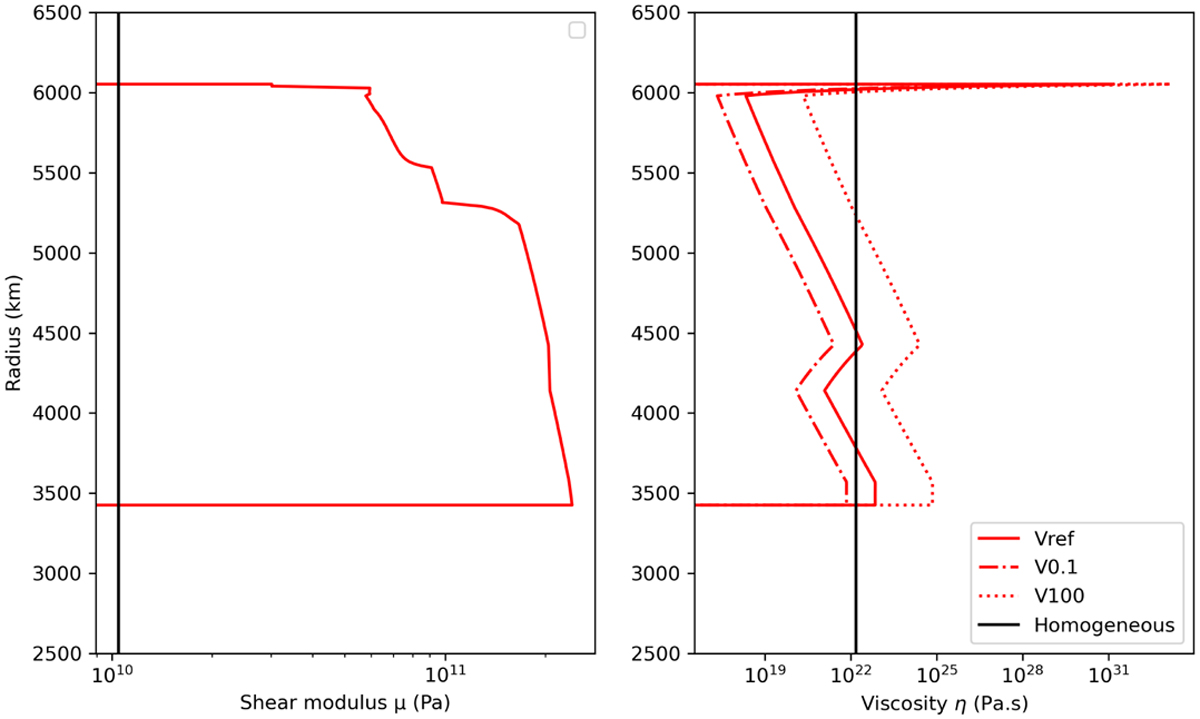

Shear modulus and viscosity profiles for the multilayer reference model Vreſ and homogeneous model considered here, shown as solid red and black lines, respectively. The dotted and dash-dotted red lines represent the two profiles V0.1 and V100 derived from the multilayer reference model with a viscosity multiplied by ×0.1 and ×100 times, respectively. The viscosity η is computed as in Dumoulin et al. (2017) using Eq. (8) of this work.
