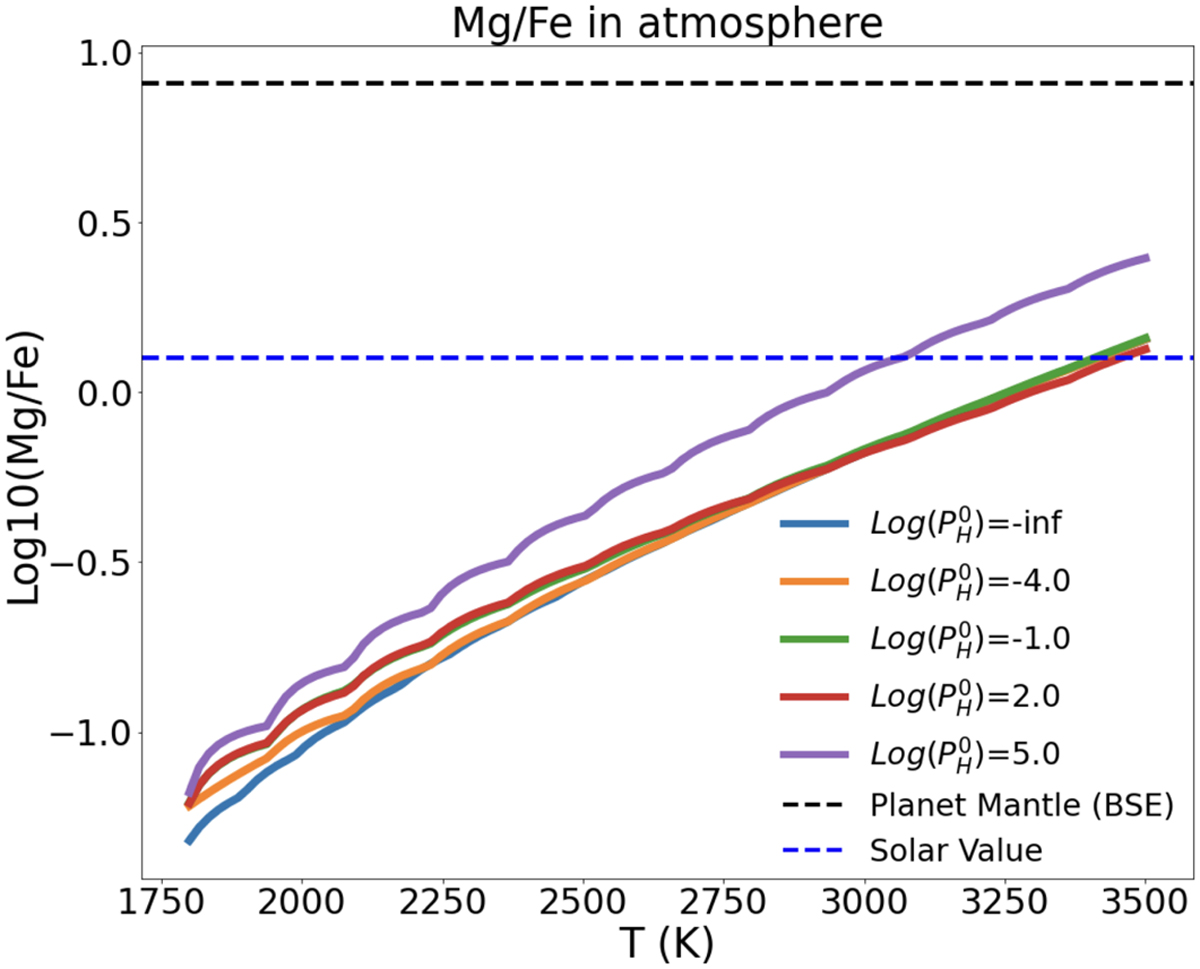

Molar Mg/Fe ratio in the vapor above a magma ocean as a function of surface temperature. Colors display the amount of hydrogen in the planet (Log() in bars). The blue dashed line shows the solar value of Mg/Fe and the black dashed line shows the BSE value.
