Fig. E.1


Download original image

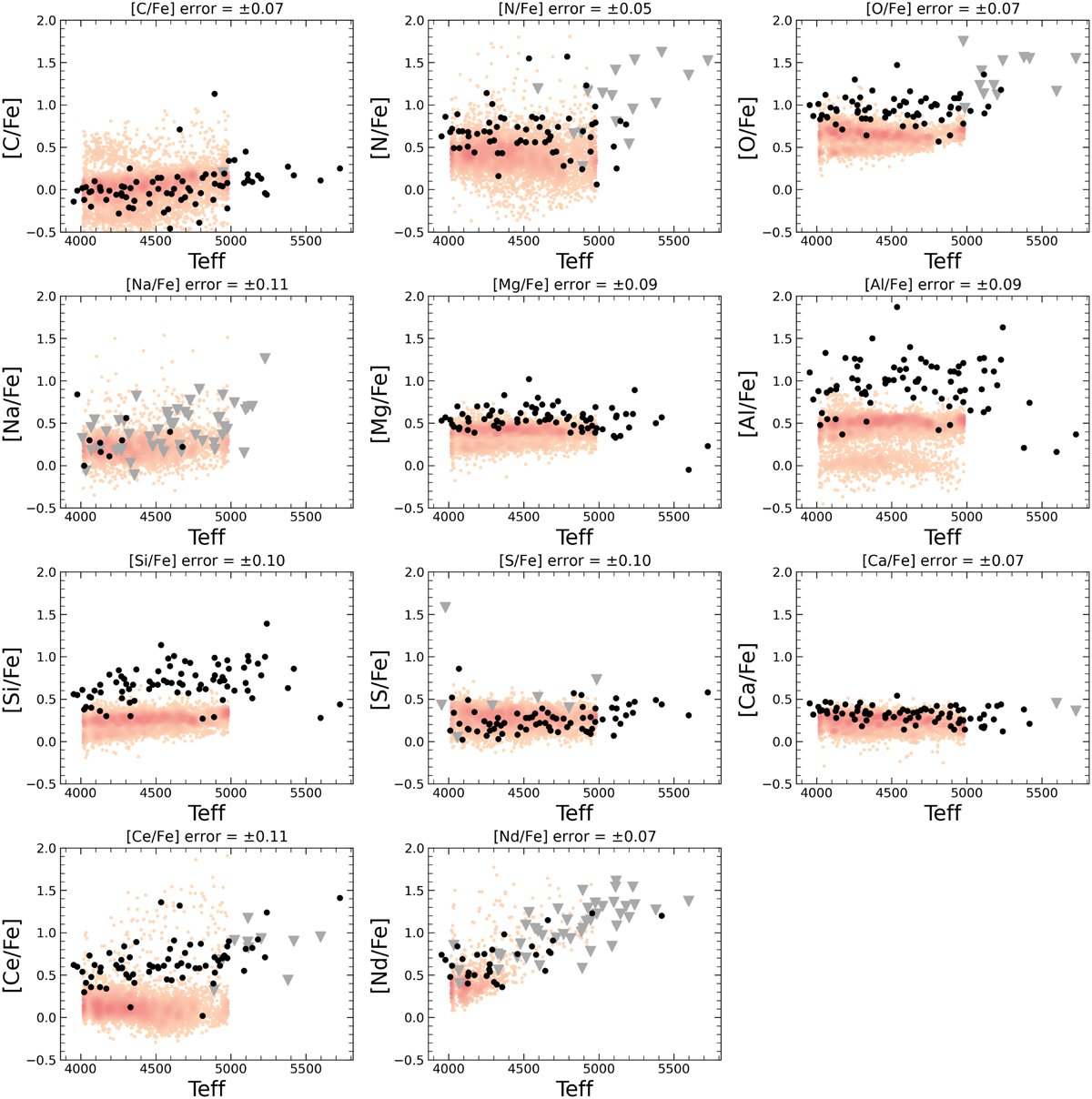

Abundance ratios [X/Fe] vs. effective temperature ‚ displaying one element X in each panel. Gray downward triangles indicate upper limits. The background sample was selected and the corresponding abundances were calculated following the procedure described in Sects. 2.2 and 3.2. In the case of S, the background stars have been selected out of the VAC from Hayes et al. (2022). The color-coding reflects the number density of the stars. For clarity, error bars are suppressed. The errors adopted for each element are given in the title of each panel and correspond to the average standard deviation listed in Table D.2. Here we assume that the error of the effective temperature is the average ASPCAP Teff error over the 78 sample stars (±14.32 K).
