Fig. 7


Download original image

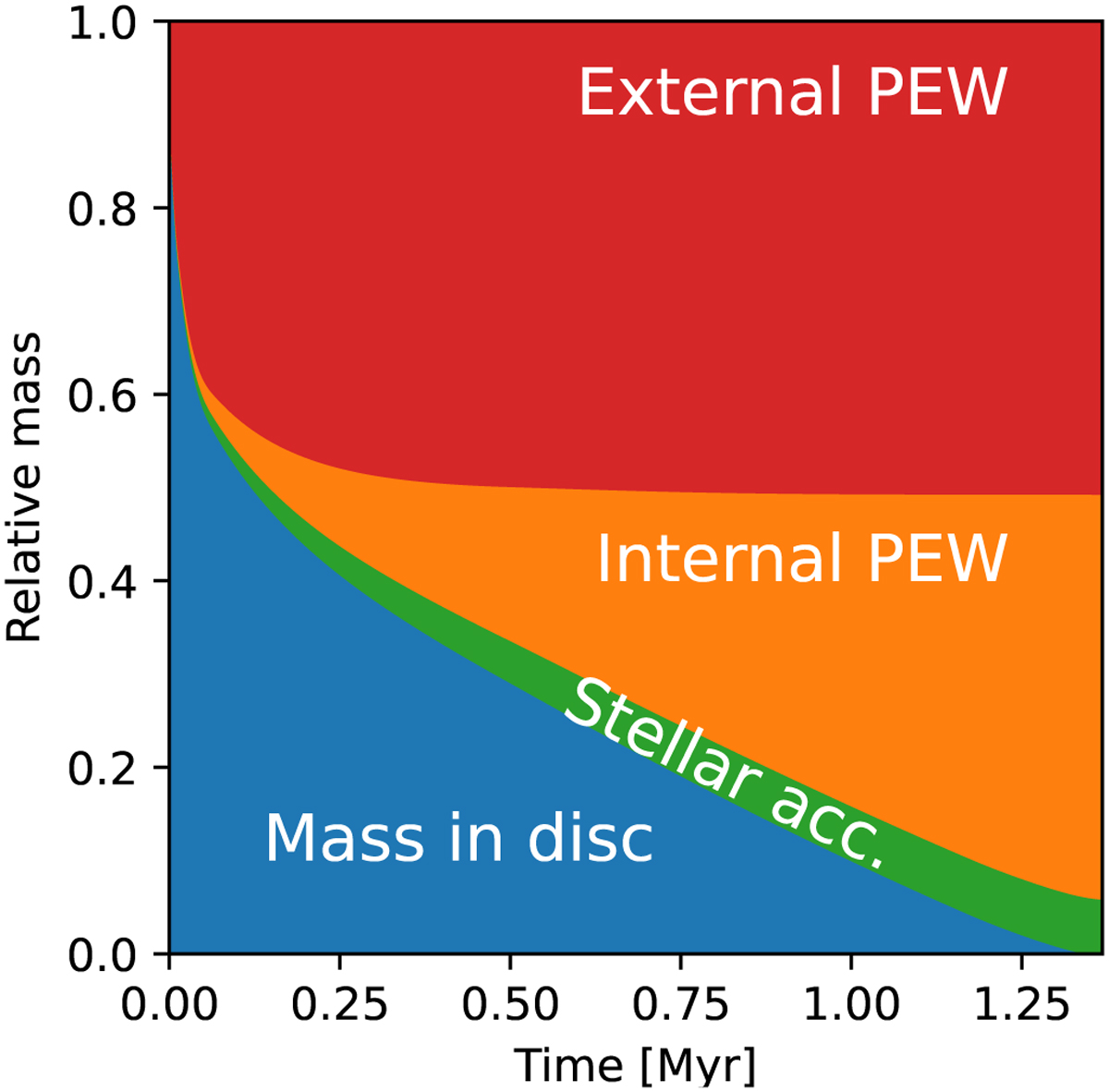

Evolution of the relative gas mass: in the disc (blue), accreted onto the star (green), and lost by internal (orange) or external (red) photoevaporation until disc dispersal at 1.38 Myr. This represents a typical disc, with M = 0.5 M, MG/M = 0.1, β = 0.9, Rin = 0.1 au, r1 = 87.8 au, α = 1 × 10–3, LX = 7.02 × 1029 ergs–1, and F = 10 G0. The parameters for the solid disc are irrelevant, as this shows only the gas component, except that we used fD/G = 0.0149 to compute the solid mass needed to set the characteristic radius r1.
