Fig. 6
Download original image

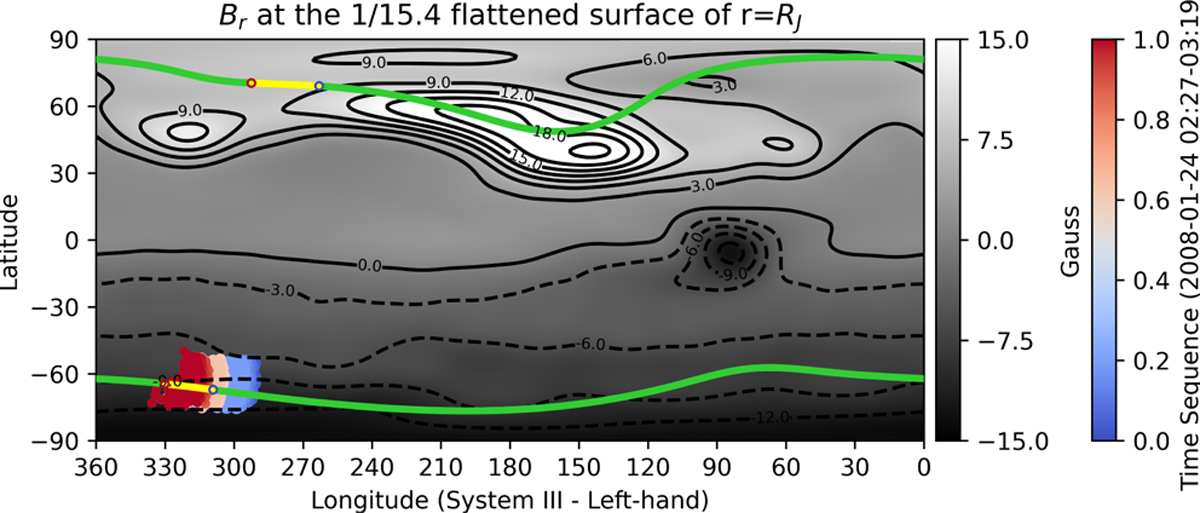

Projected location of the Io-C emission at the flattened Jovian surface of 1 RJ. All modeled source footprints are shown as blue-to-red dots varying with observation time. The Io footprints are shown as green lines in the northern and southern hemispheres according to where the yellow segments represent the local Io footprints at observation time.
