Fig. 9.
Download original image

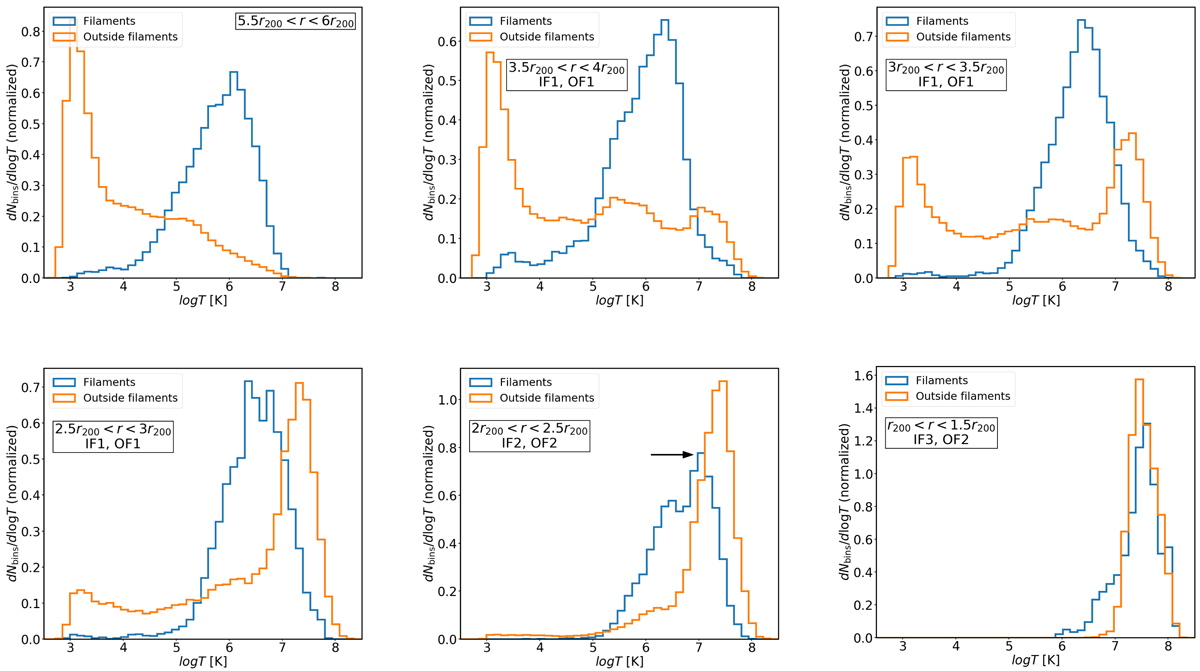

Temperature distributions within (blue line) and outside (orange line) filaments at different radial distances from the cluster centre. The distance is decreasing from left to right and top to bottom as indicated in the panels. The secondary peak discussed in the text is indicated with a black arrow in the bottom middle panel.
