Fig. 15.


Download original image

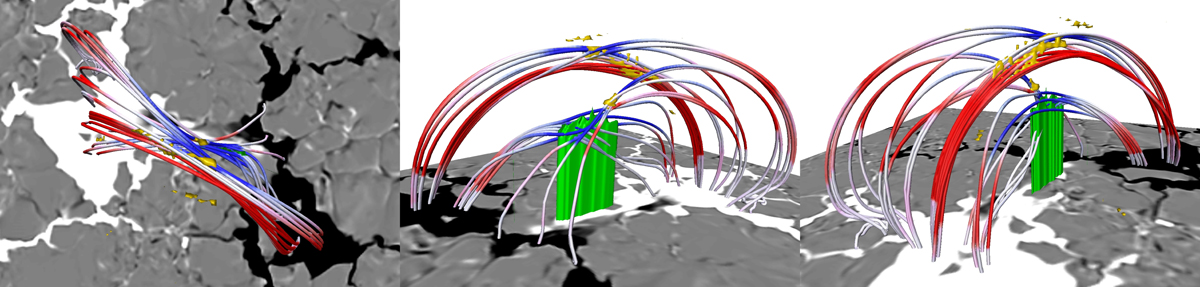

Three-dimensional rendering of the area of interest over the photospheric vertical component of the magnetic field at t = 102 s. Here, we choose to plot the formation height of the Hα blue wing at −53 km s−1 (green isosurface), the formation height of the Si IV 1394 Å line (yellow isosurface) and magnetic field lines of the structure in blue and red, corresponding to up- and downflowing material with vz = ±122 km s−1 respectively. This figure was produced using VAPOR.
