Fig. 10.


Download original image

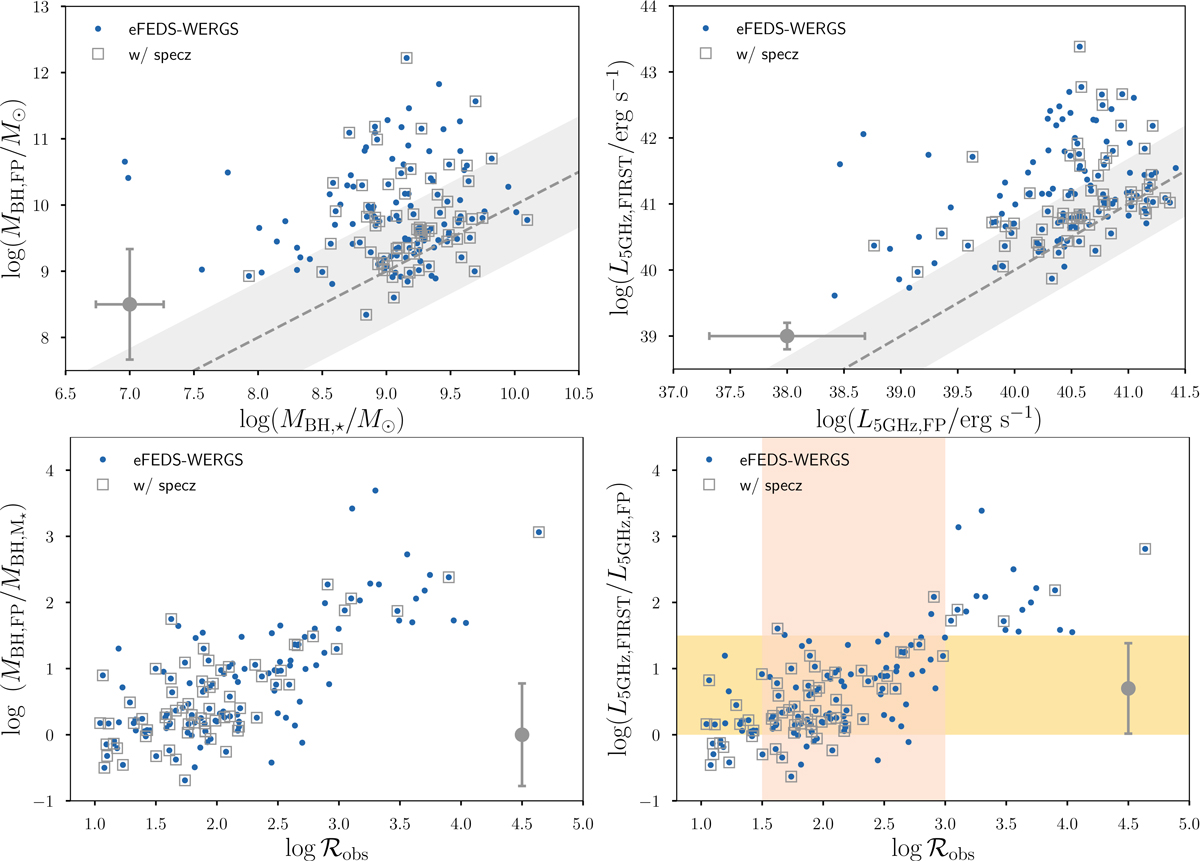

Relations between the values obtained from the BH fundamental plane and those obtained in this study. Top left: relation between two different BH mass estimations. MBH,FP is obtained from the fundamental plane of Gültekin et al. (2019) and by using the obtained X-ray and radio luminosities in this study. MBH, ⋆ is the BH mass estimated from the scaling relation of Kormendy & Ho (2013) and by using the obtained stellar mass. The gray cross represents the typical error bar of the two parameters. The gray dashed line represents the 1:1 line with the scatter area of the typical error bar. Top right: relation between the L5 GHz, FIRST and L5 GHz, FP, which is estimated from the fundamental plane relation of Gültekin et al. (2019) with the values of MBH, ⋆ and . The gray cross represents the typical error bar of the two parameters. The gray dashed line represents the 1:1 line, with the scatter area of the typical error bar. Bottom left: black hole mass ratio of MBH,FP/MBH, ⋆ as a function of ℛobs. Bottom right: radio-luminosity ratio of L5 GHz, FIRST/L5 GHz, FP as a function of ℛobs. The orange shaded area represents the possible Doppler boost area by assuming typical radio-loud AGN. The red shaded area represents the possible range of the ℛobs for blazars by assuming a blazar sequence at 0 < z < 5. The gray cross represents the typical error bar of the two values in each panel.
