Fig. 5
Download original image

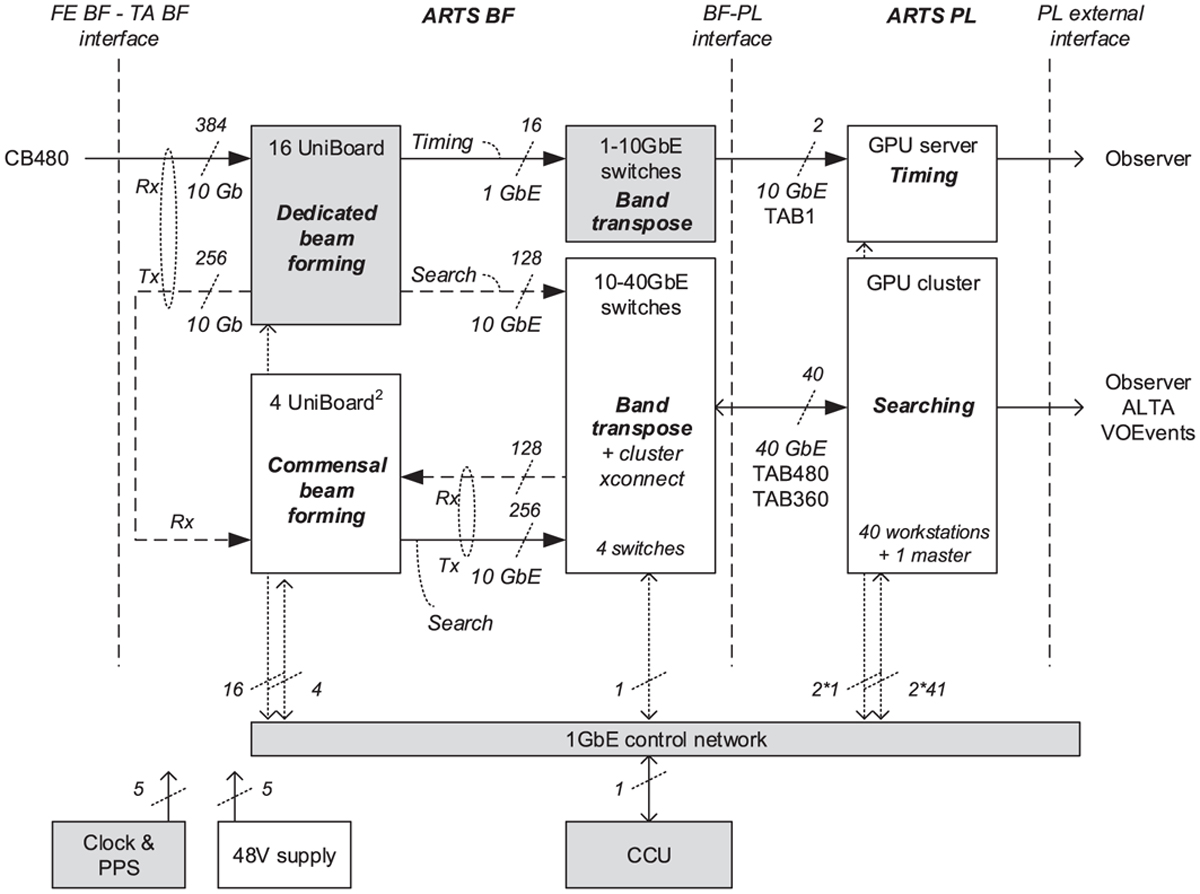

Mapping of the ARTS system on the UNBs, UNB2s, switch, and CPU/GPU cluster hardware. Only one of either the commensal or the dedicated beam forming platforms will be running at a given time. The dashed Tx links are unidirectional links. The dashed Rx links are full duplex links that are combined with the UNB2 Tx links. Parts in grey are hardware used by or shared with Apertif X.
