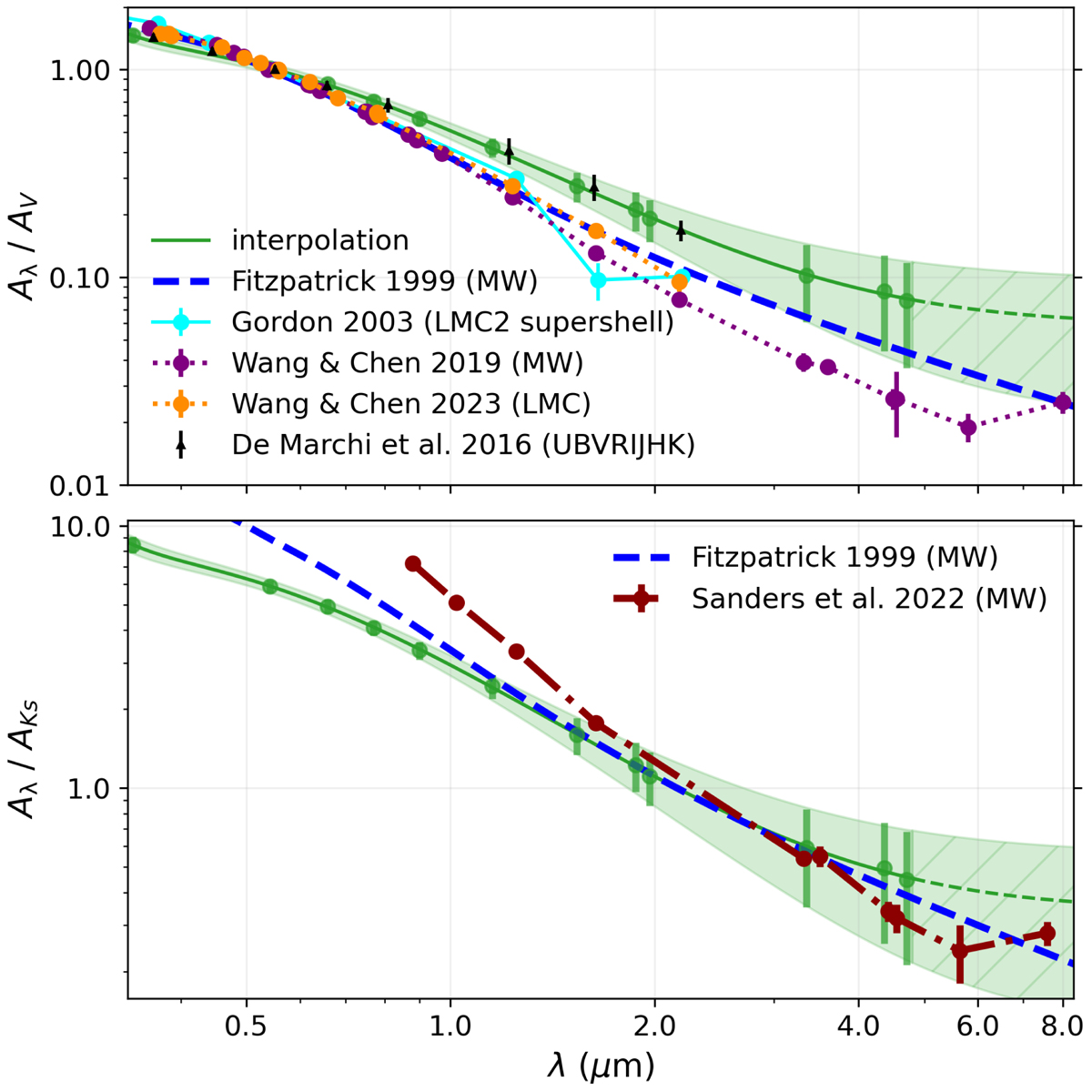

Fig. 5.

Download original image
Comparison of relative extinction with literature results. Top: extinction relative to AV assuming RF090W − F200W(AV) = 2.53 in green. Results for the MW in blue dashed (Fitzpatrick 1999) and purple (Wang & Chen 2019). Results for the LMC in cyan (Gordon et al. 2003) and orange (Wang & Chen 2023). Black show the UBVRIHJK values from De Marchi et al. (2016). Bottom: relative to AKs assuming RF090W − F200W(AV) = 0.45. Results from Sanders et al. (2022) for the MW in dark red, and from Fitzpatrick (1999) in blue.
