Fig. C.1

Download original image

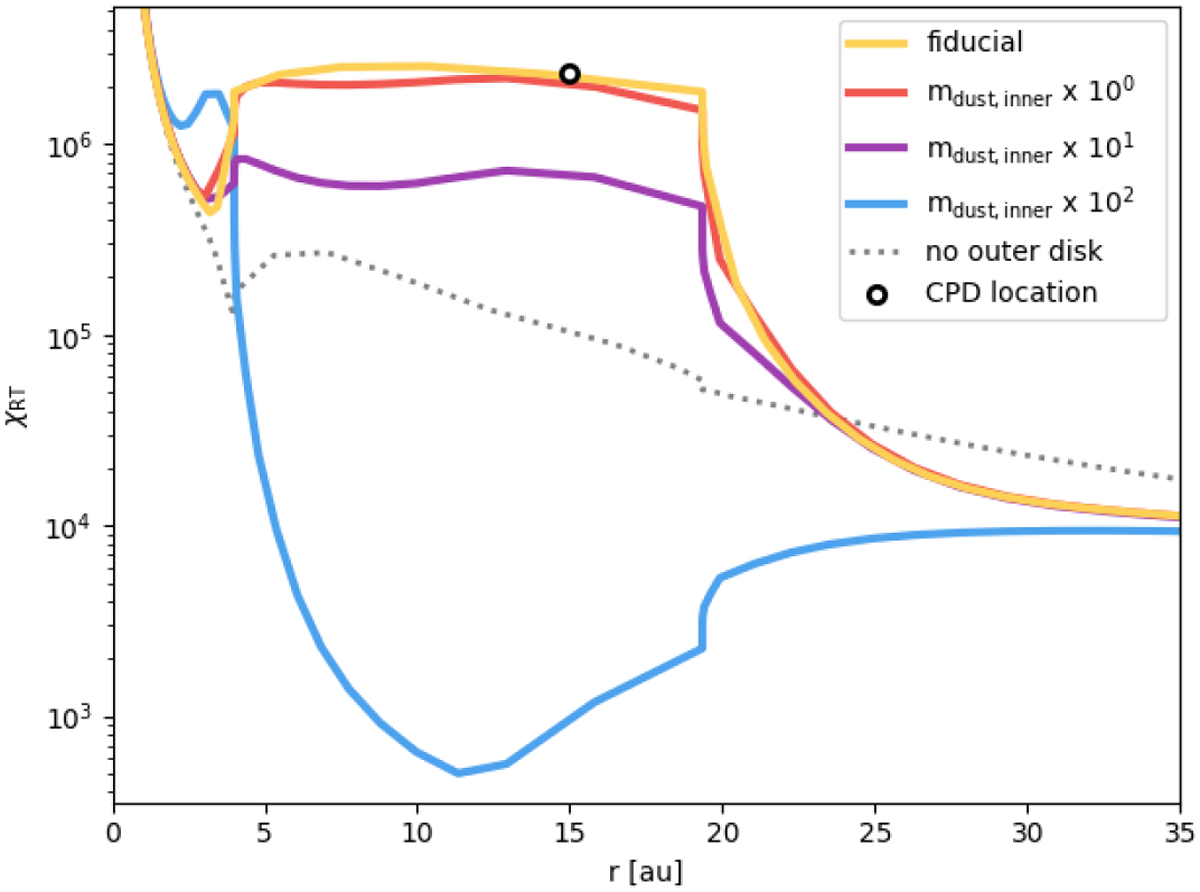

Midplane χRT extracted from the 2D radiative transfer of the PRODIMO HD 100546 disk model for the reference case, and in the case of the dust mass in the gap being equal to 1, 10, and 100 times the amount of dust in the inner disk. The case of no outer disk is included as the gray dashed line to highlight the role of back-scattering off the gap outer wall.
