Fig. B.1


Download original image

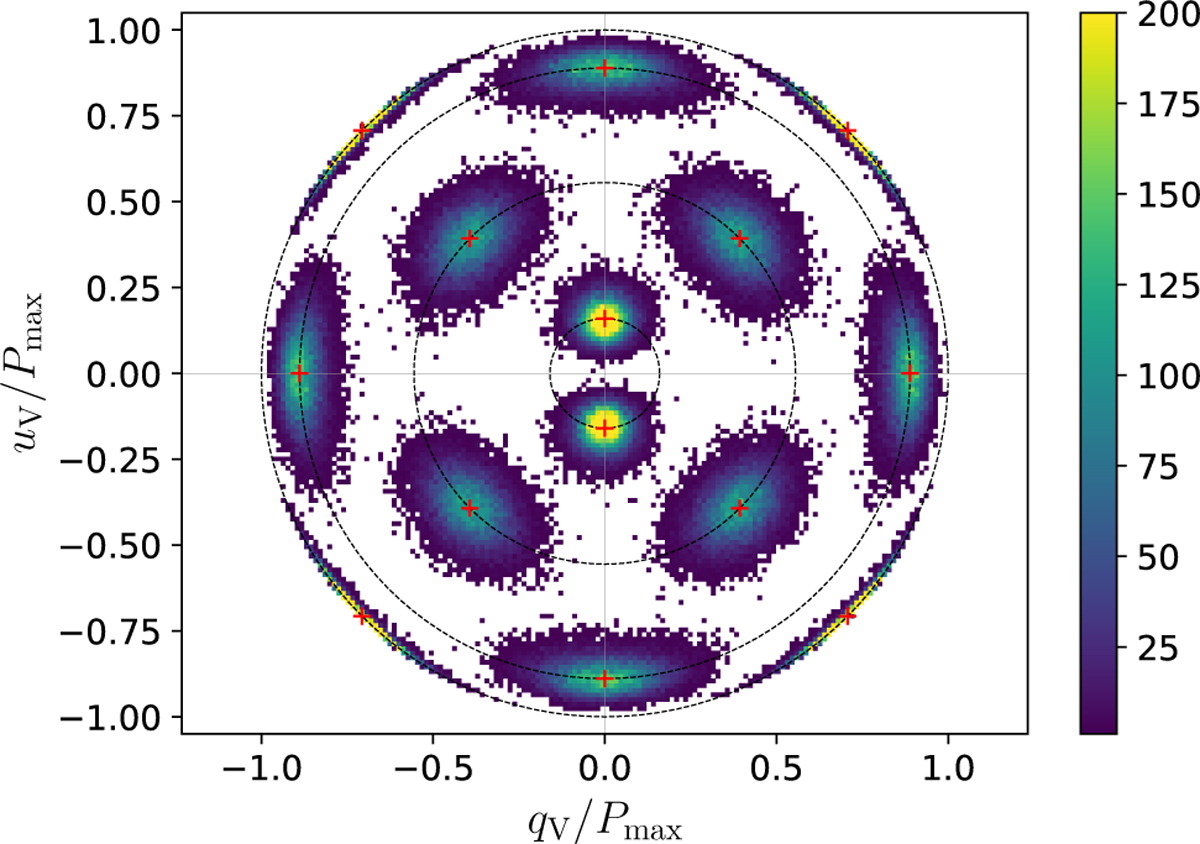

Examples of scatter produced in the (qV, uV) plane by the addition of a stochastic component to a regular magnetic field for different inclination and position angle of the latter and for Aturb = 0.1. Fourteen configurations are shown, as explained in the text. The red crosses indicate the (qV, uV) obtained for Aturb = 0 (regular field only). The scatter around each cross shows a 2D histogram of 10,000 realizations of (qV, uV) values obtained with the addition of the stochastic component. We note that the (qV, uV) are normalized by Pmax.
