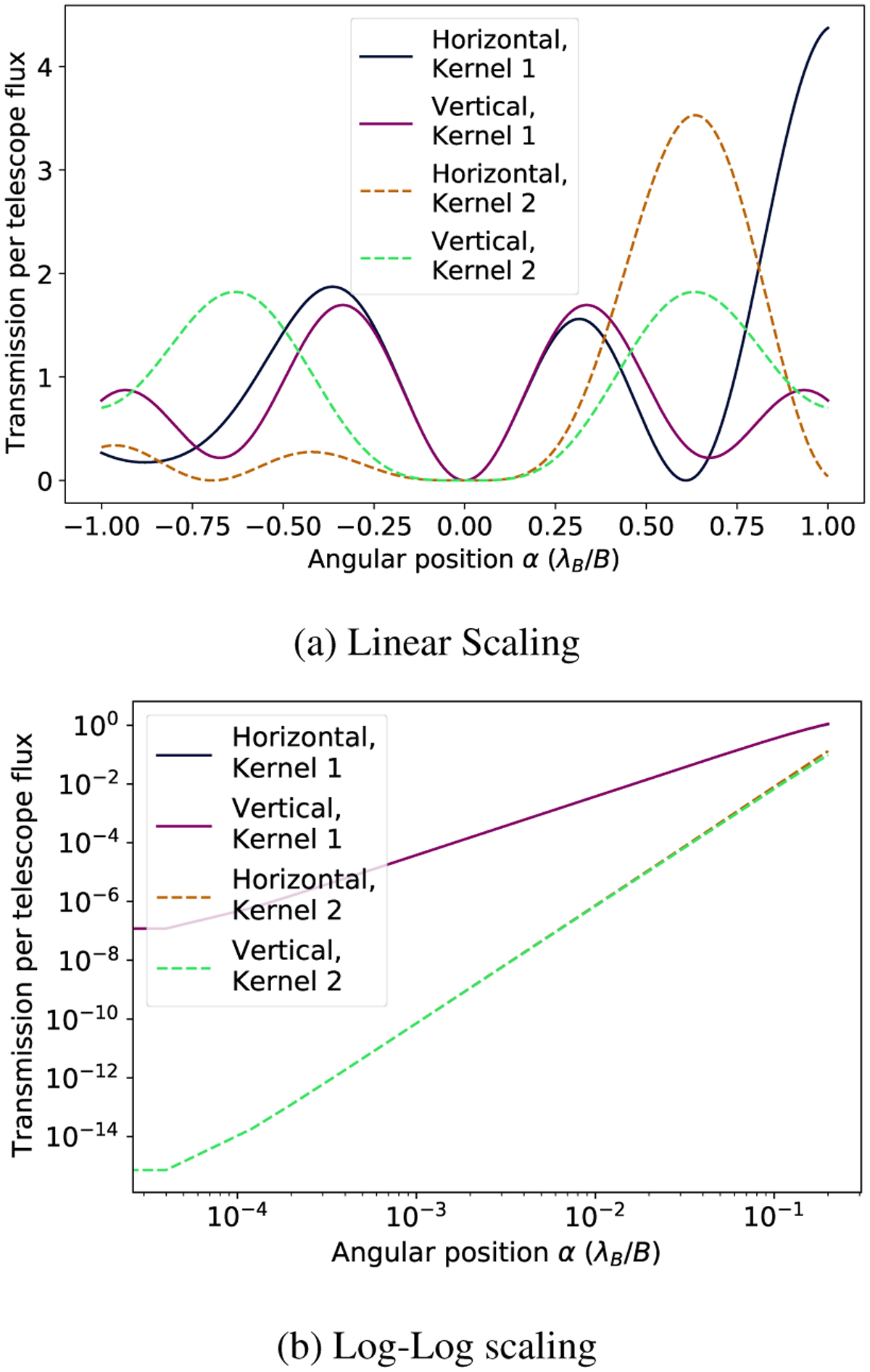

Instrument transmission per telescope flux as a function of angular separation from the optical axis for each output pair corresponding to the two kernels (i.e. W₄ for kernel 1 and W₂ for kernel 2). For each output, a slice through the optical axis was taken in the horizontal and vertical directions; due to the symmetry about the horizontal axis shown in the inset in Fig. 1, the vertical component is symmetric about zero.
