Fig. 13

Download original image

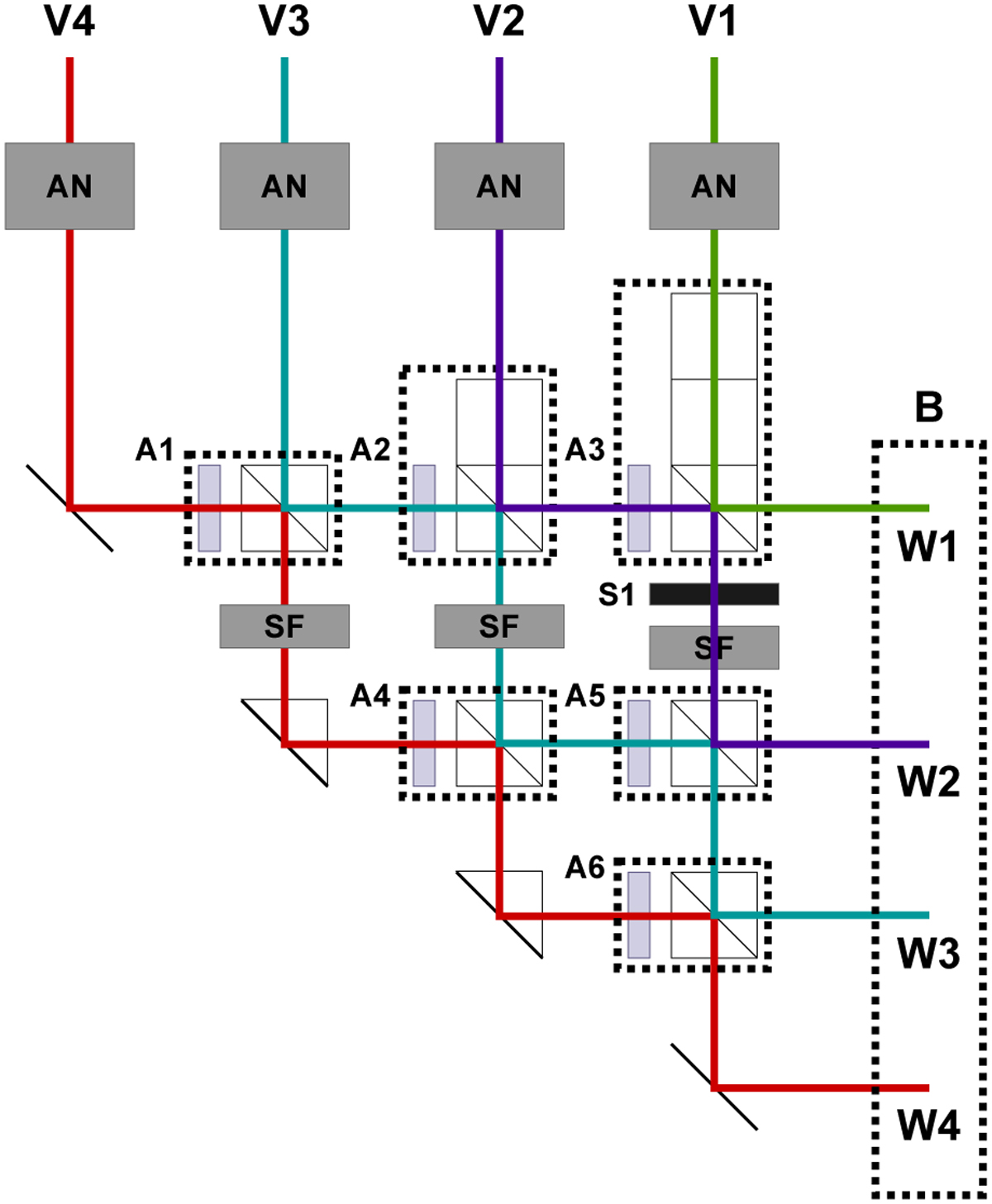

Schematic of an X-array beam combiner based on the design of Guyon et al. (2013). The design is the same as in Fig. 1, except with four inputs and outputs, and the optical parameters found in Table 3.
