Fig. 1

Download original image

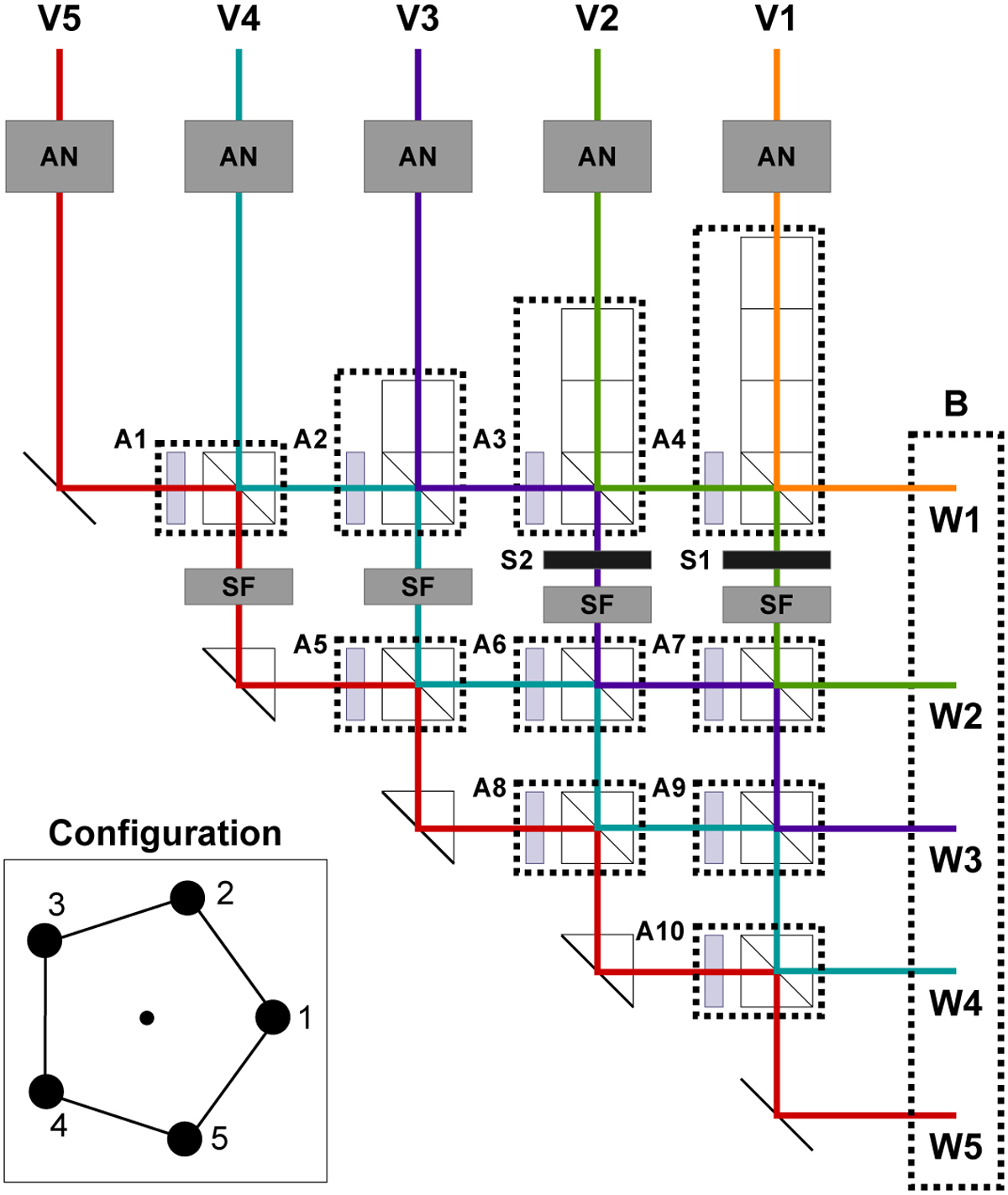

Schematic of a Kernel-5 beam combiner, based on the design of Guyon et al. (2013). Inputs V1 through V5 pass through five adaptive nuller units (AN), a series of ten beam splitter modules (A1 through A10) consisting of a beam splitter and phase shifting plate on one input, and four spatial filters (SF). The five outputs consist of one bright output W1 and four nulled outputs W2 through W4. Two shutters (S) can be used in case of a telescope failure (see Sect. 4). The inset shows the telescope configuration and their corresponding inputs.
