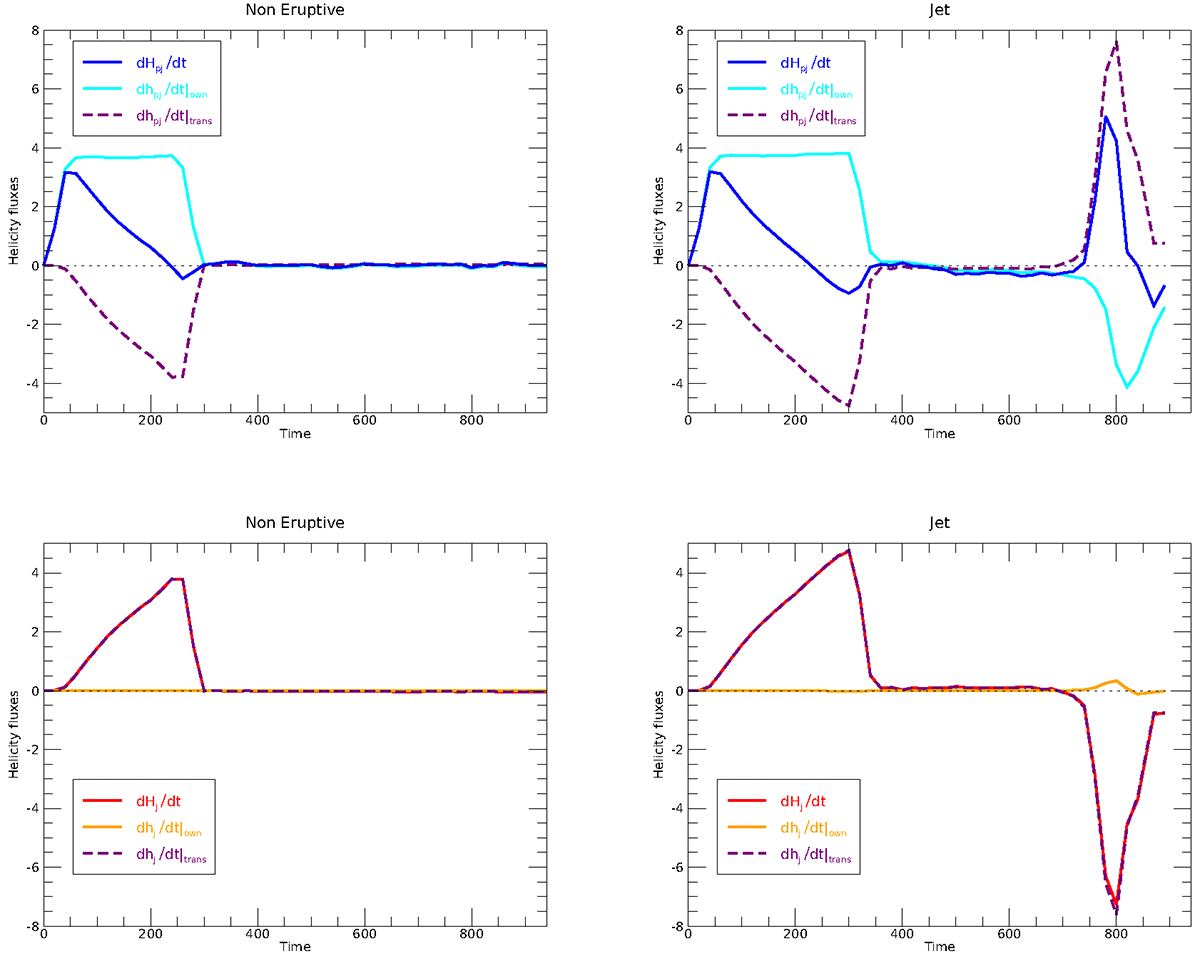

Fig. 5.

Download original image
Evolution of the terms of the time variation equation of Hpj (Eq. (18), top panels) and Hj (Eq. (17), bottom panels) for the non-eruptive (left column) and the jet-producing (right column) simulations: dHpj/dt (blue line), dHpj/dt|Own (cyan line), dHj/dt (red line), dHj/dt|Own (orange line), and dHpj/dt|Trans = −dHpj/dt|Trans (dashed purple lines).
