Fig. 4.

Download original image

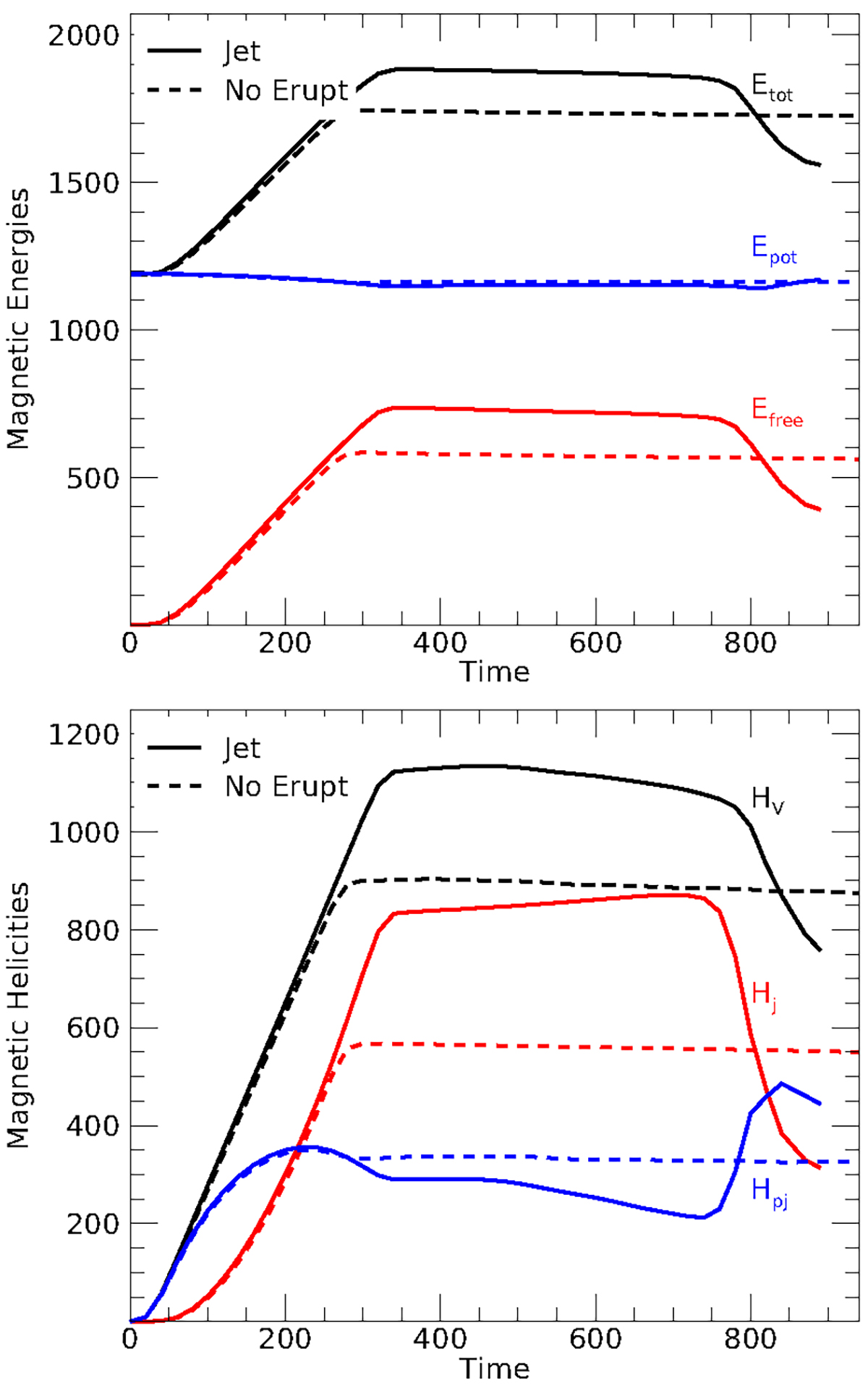

Time evolution of the magnetic energies and helicities. Top panel: evolution of the total magnetic energy (Etot, black lines), potential magnetic energy (Epot, blue lines), and free magnetic energy (Efree, red lines) in the non-eruptive (dashed lines) and in the jet-producing (continuous lines) simulations. Bottom panel: evolution of the total relative magnetic helicity (HV, black lines), non-potential magnetic helicity (Hj, red lines), and volume-threading magnetic helicity (Hpj, blue lines), in the non-eruptive (dashed lines) and in the jet-producing (continuous lines) simulations.
