Fig. A.1


Download original image

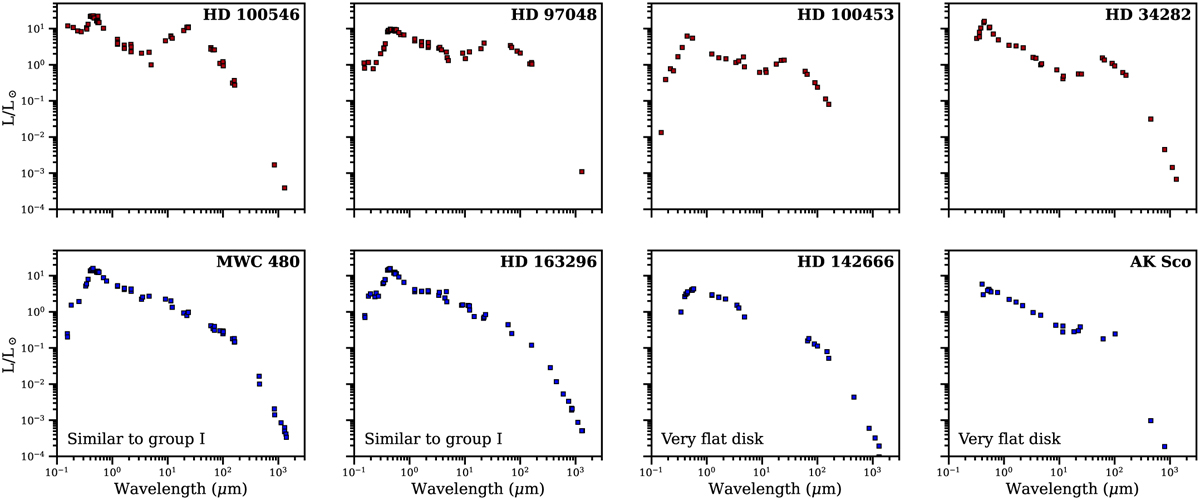

Spectral energy distributions (SEDs) of the eight disks. The top and bottom rows show the SEDs of the group I and group II sources, respectively. The SEDs of HD 100546, HD 97048, MWC 480, HD 163296, and HD 142666 are from the DIANA project (Woitke et al. 2019). The SEDs of HD 100453 and HD 34282 are from Khalafinejad et al. (2016). Lastly, the SED of AK Sco is compiled from the following sources: ESA (1997); Hindsley & Harrington (1994); Zacharias et al. (2004); Gaia Collaboration (2020); Ishihara et al. (2010); Cutri & et al. (2012); Jensen et al. (1996). The SEDs of HD 100453, HD 34282, and AK Sco have been dereddened using the Astropy affiliated package dust_extinction with RV = 3.1 (Bessell 1979) and a visual extinction (AV) from Guzmán-Díaz et al. (2021).
