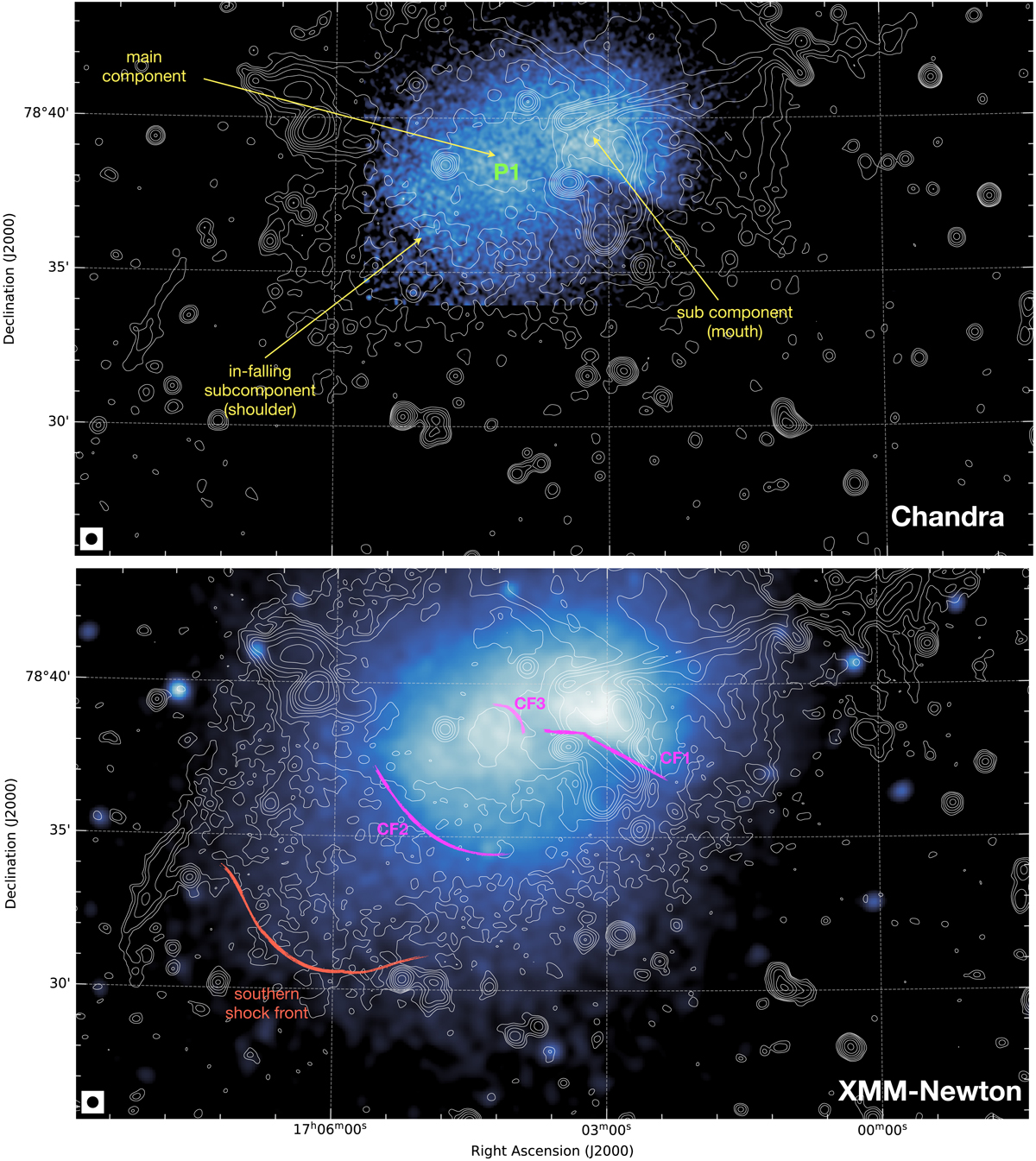

Chandra 0.5−2.0 keV band point source subtracted image, smoothed with a Gaussian full width at half maximum (FWHM) of 3″, overlaid with uGMRT Band 4 radio contours at 20″ resolution (top-panel). XMM-Newton image overlaid with LOFAR 144 MHz radio contours at 20″ resolution (bottom-panel). Contour levels are drawn at [1, 2, 4, 8, …]  ×  4 σ_rms. The radio beam size is indicated in bottom left corner of the image. The labeling of cold fronts are done following Ge et al. (2020). The overlay shows that the radio halo morphology nicely follows the thermal X-ray emission morphology.
