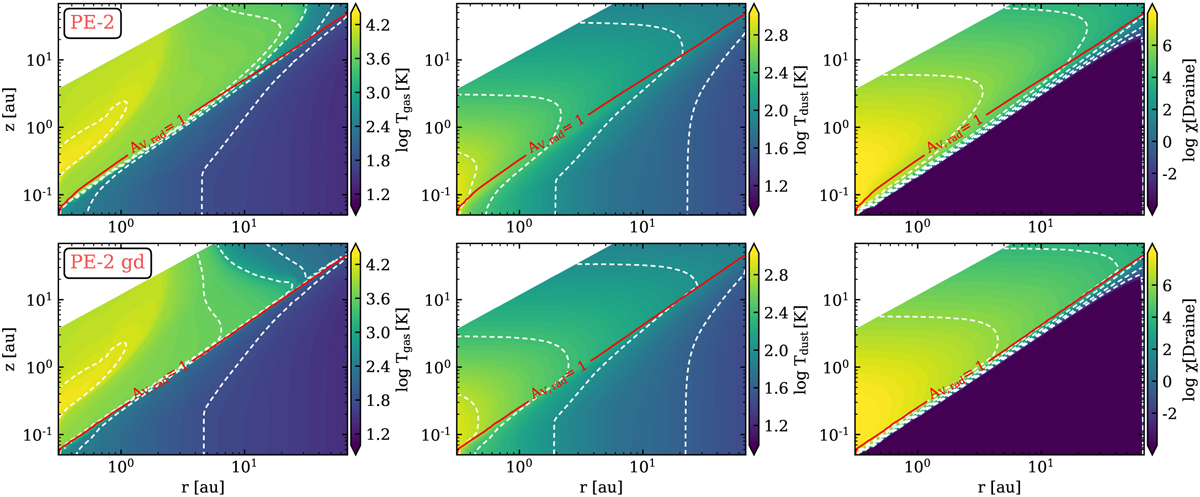

Two-dimensional gas temperature T_gas, dust temperature T_dust, and FUV radiation field χ (in units of the Draine field Draine & Bertoldi 1996; Woitke et al. 2009) for the PE-2 (top row) and PE-2 gd (bottom row) models. The red solid contour shows where the radial visual extinction A_V,rad is equal to unity, which roughly separates the wind region and the rotating disk. The white dashed contours correspond to the values shown in the colour bars.
