Fig. A.1
Download original image

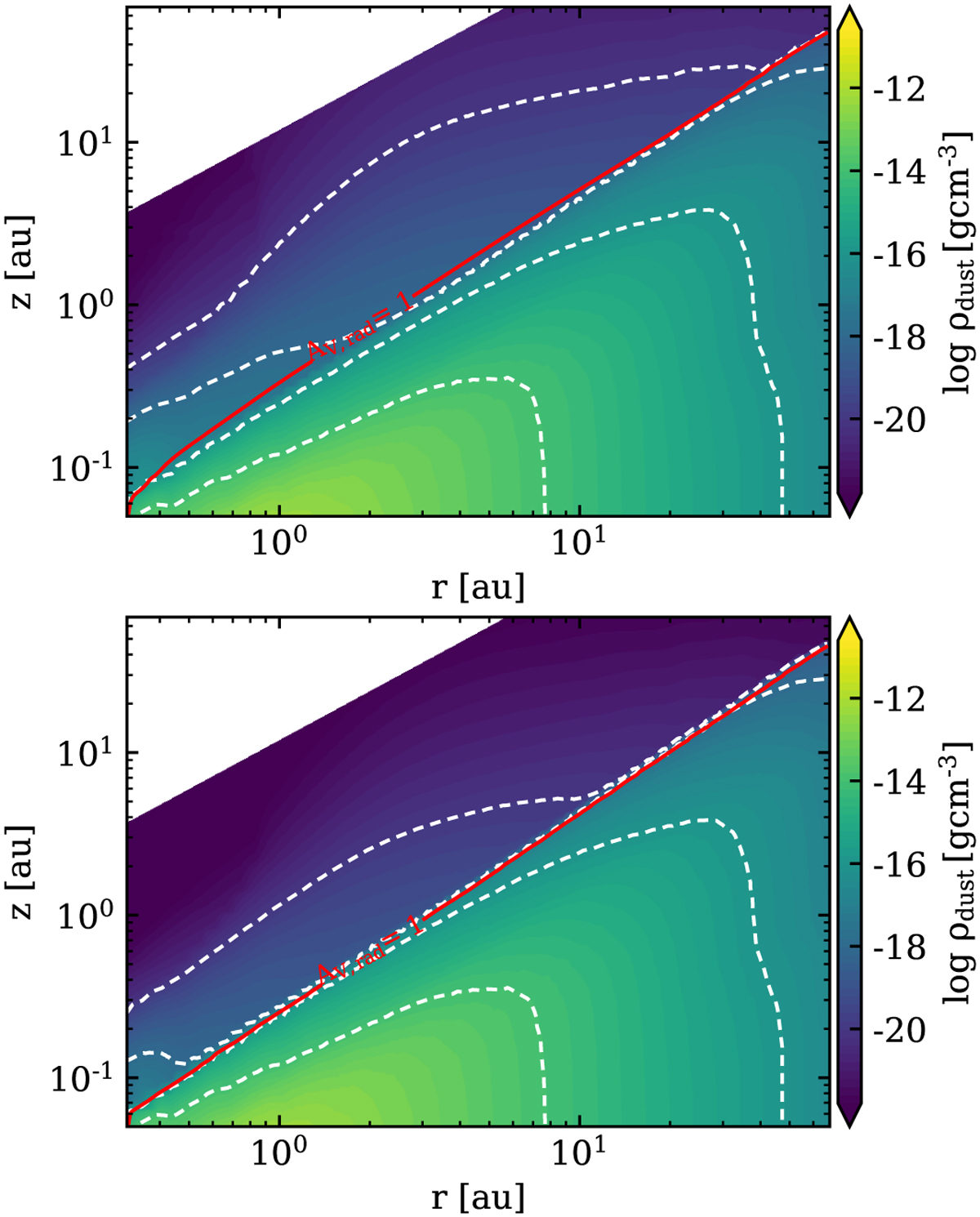

Dust density structure for the models with a constant gas-to-dust mass ratio of g/d = 100 in the disk and wind (top panel) and the model with a factor 10 lower dust density g/d = 1000 in the wind region (bottom panel). The red solid contour shows where the radial visual extinction AV,rad equals unity. The white dashed contours correspond to the values shown in the colour bar.
