Fig. 12.


Download original image

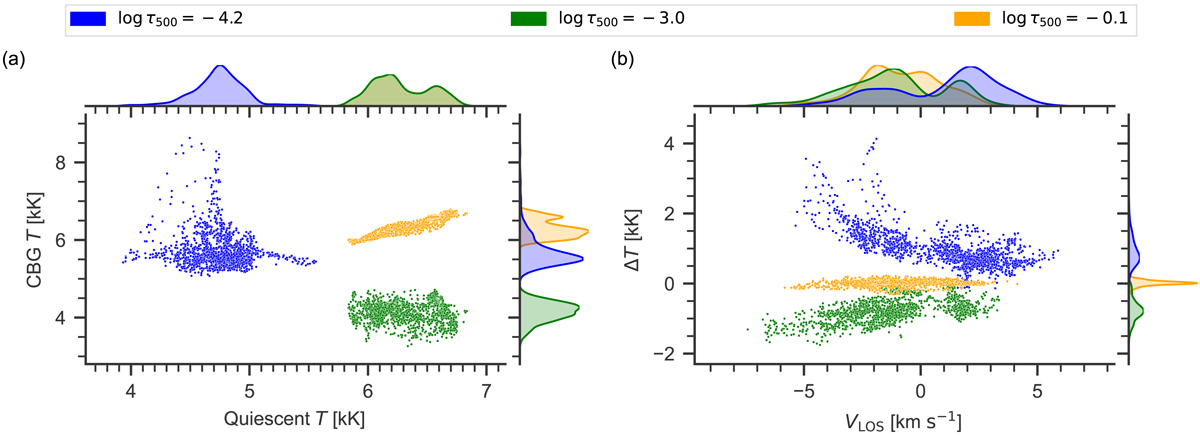

Relationship of T enhancement and VLOS at log τ500 = [−4.2, −3, −0.1]. Panel a shows the scatter plot between T when the CBG is at its maximum brightness (maximum enhancement in the K2V peak intensity) with respect to T before the onset of the CBG. Panel b shows the scatter plot between the T enhancement with respect to the VLOS when the CBG is at its maximum brightness.
