Fig. B.27.
Download original image

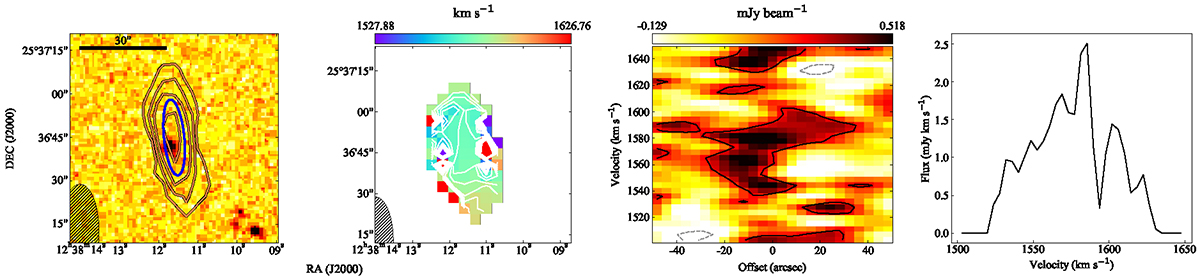

As B.16 but for source 8 in the cube of NGC 4565. Contours for moment 0 are 9.6, 38.5, 77.0, and 153.9×1019cm−2, but overlaid on a DDS 2 R-band image as it is outside the HALOSTARS field. Contours for the velocity field start at 1527.88 km s−1 and increase with 5.00 km s−1. The PV Diagram is extracted at a PA of 186° with contours at -1.5, 1.5, and 3 σ, with σ = 0.193 mJy beam−1.
