Fig. 9

Download original image

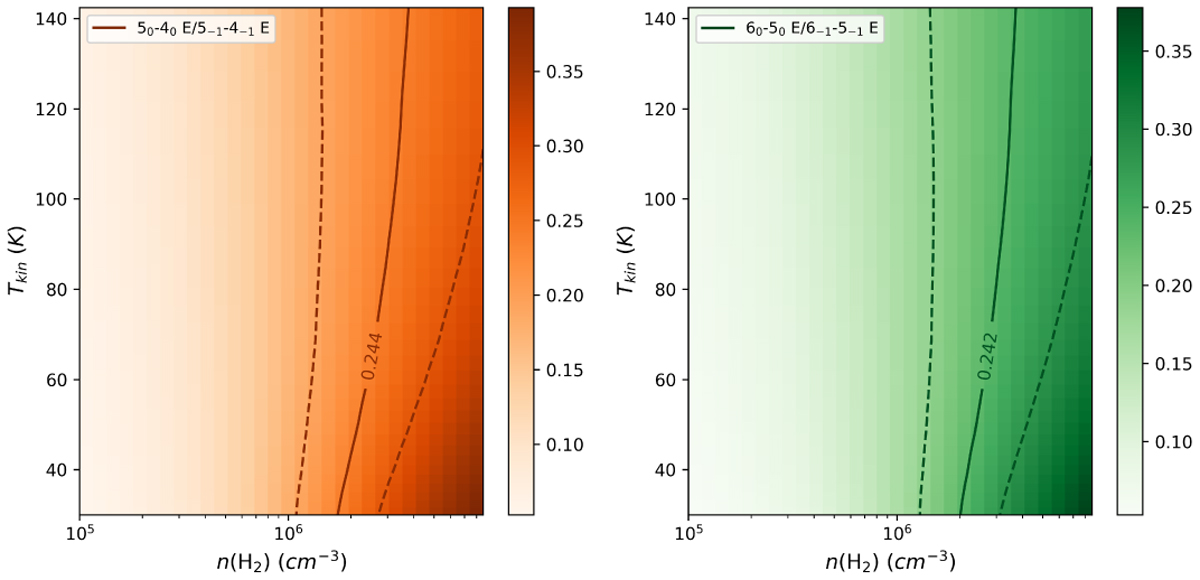

RADEX non-LTE modeling of the CH3OH line ratios to probe H2 spatial-density. The solid lines are the observed values and dashed lines correspond to the uncertainties. The adopted value of column density used to produce these contours is N = 7 × 1013 cm−2.
