Fig. 7
Download original image

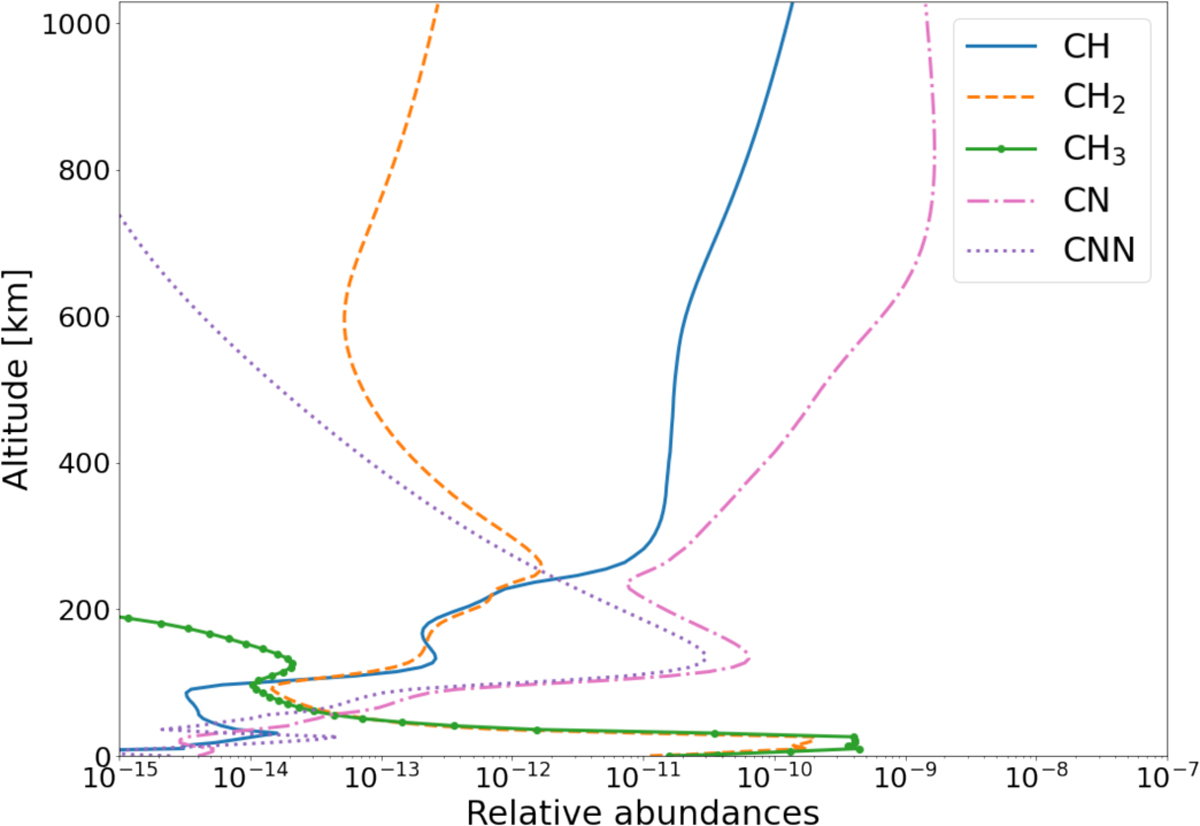

Relative abundances of the radicals that appeared in the key chemical reactions of the main neutral species (solid blue line for CH, orange dashed line for CH2, green solid line with circles for CH3. dash-dotted pink line for CN, and purple dotted line for CNN). The CH2 profile corresponds to 3CH2, as the relative abundance of 1CH2 is negligible.
