Fig. 5


Download original image

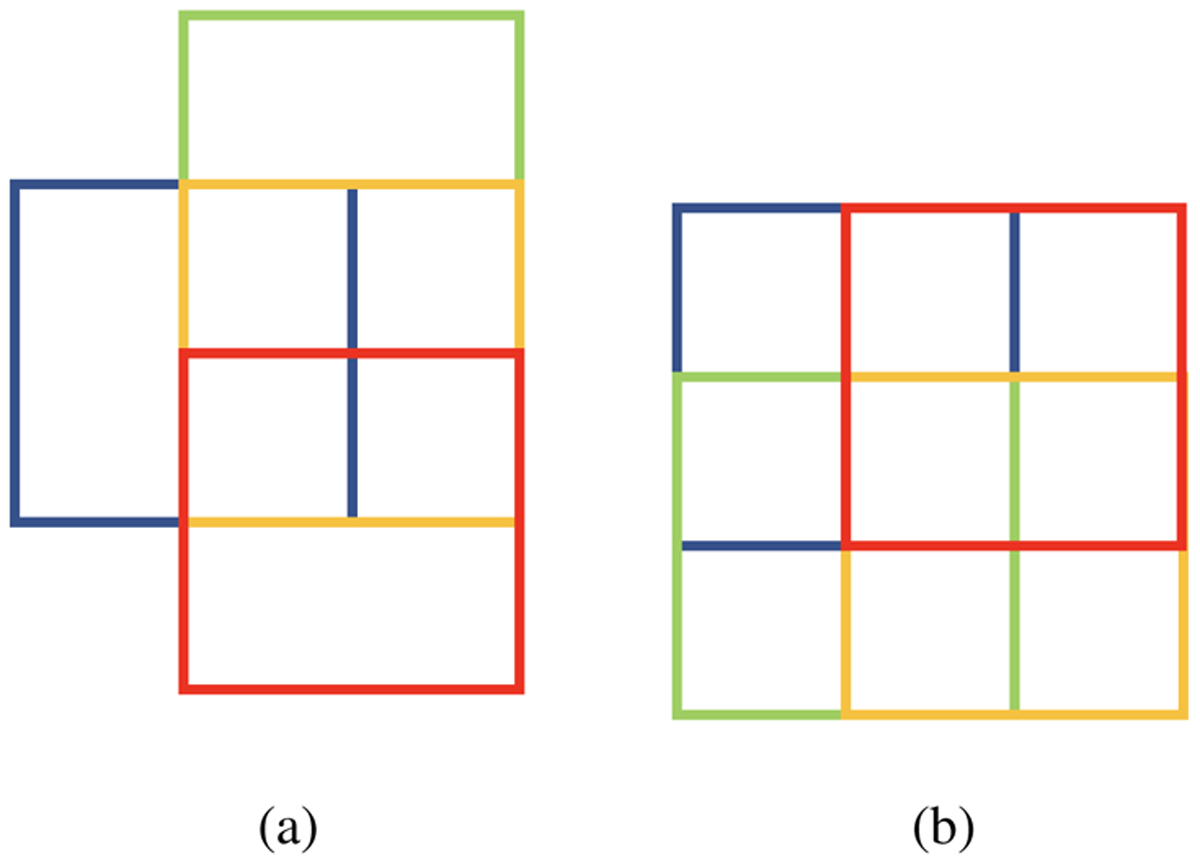

SR configurations illustrated via a projection in the pupil plane of one sub-aperture from each WFS (1 color for each): (a) 2D surface is improperly paved with shifts along the sampling grid’s axes; (b) 2D surface is properly paved with the addition of shifts at 45° with respect to the sampling grid’s axes, as in Eq. (13).
