Fig. 1.


Download original image

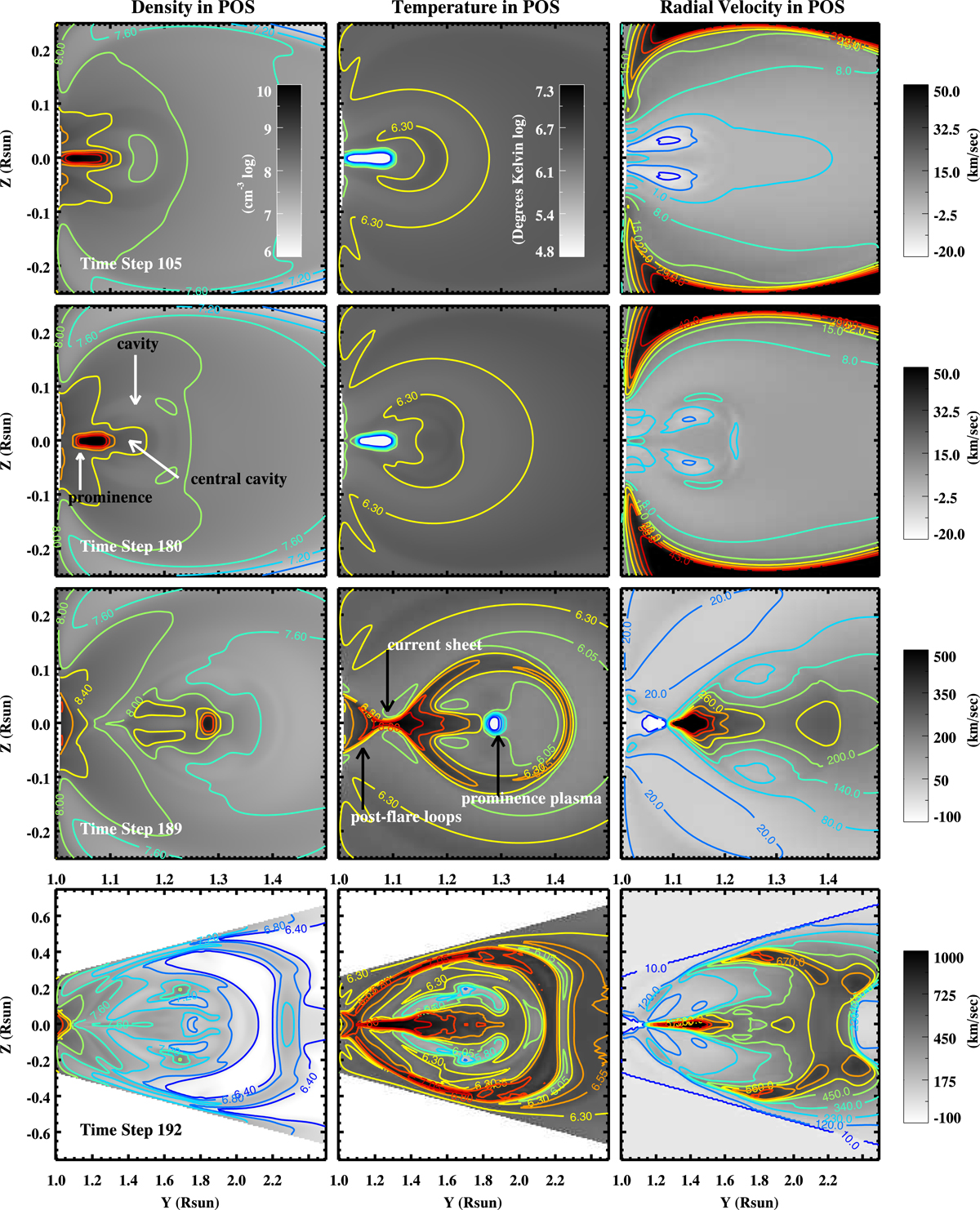

Physical parameters of the prominence-carrying flux rope system at different time steps, from the static stage (time steps 105 and 180) to the eruptive phase (time steps 189 and 192), shown from top to bottom. The electron density, temperature and radial velocity in the POS are displayed from left to right. The contours at different panels in this figure as well as in the following figures are displayed to better show the parameter distributions.
