From the Circumnuclear Disk in the Galactic Center to thick, obscuring tori of AGNs - Modeling the molecular emission of a parsec-scale torus as found in NGC 1068

Open Access

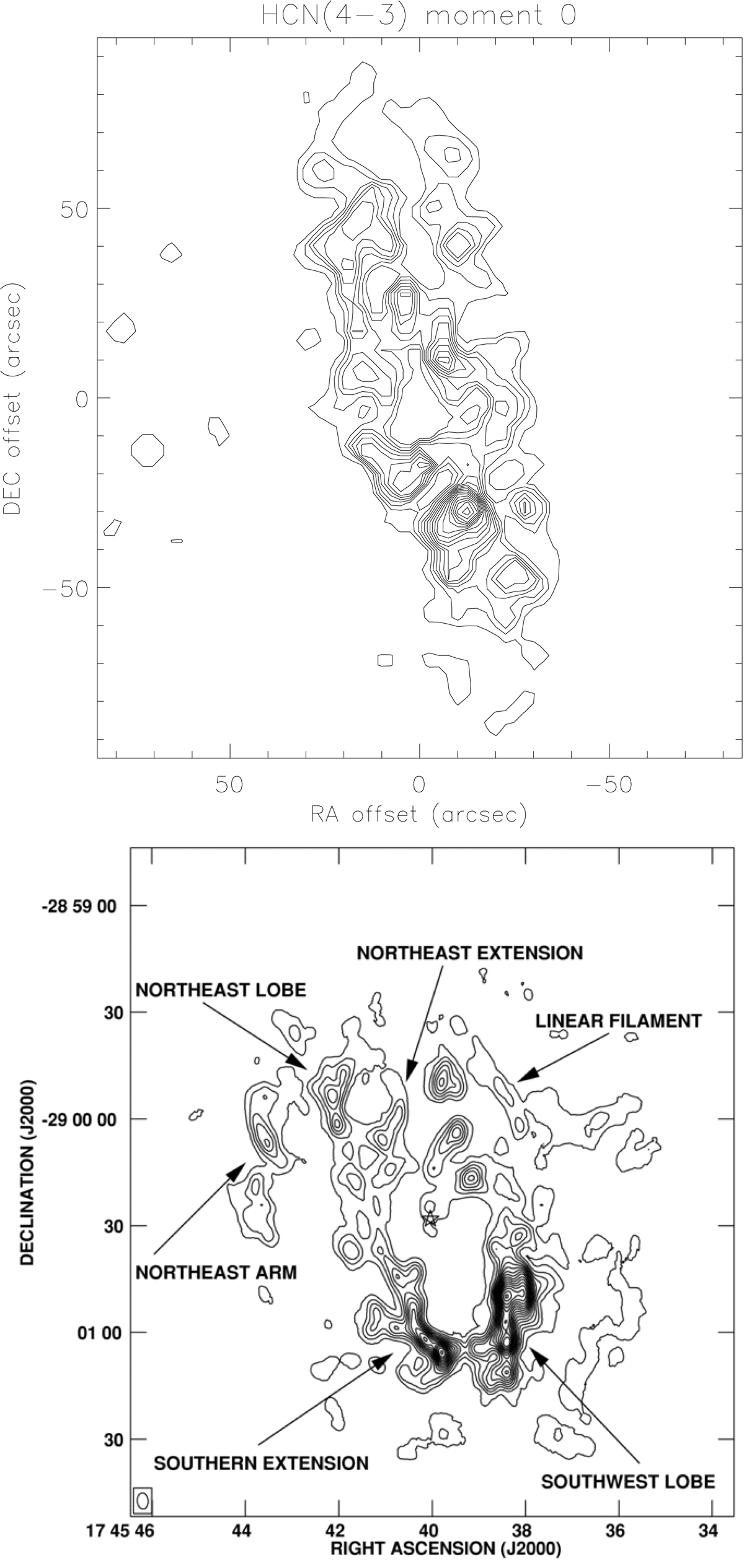

Fig. 9.

HCN(4−3) integrated intensity map. Upper panel: model. The contour levels are in steps of 53 K km s⁻¹ from 27 to 875 K km s⁻¹ The spatial resolution is 4.6″ × 3.0″. Lower panel: observations from Montero-Castaño et al. (2009). The rms is 5.9 K km s⁻¹. The contour levels are in steps of 35 K km s⁻¹ from 18 to 550 K km s⁻¹, but for the highest contour level at 574 K km s⁻¹. Sgr A^* is marked with a star.
