Fig. 15.


Download original image

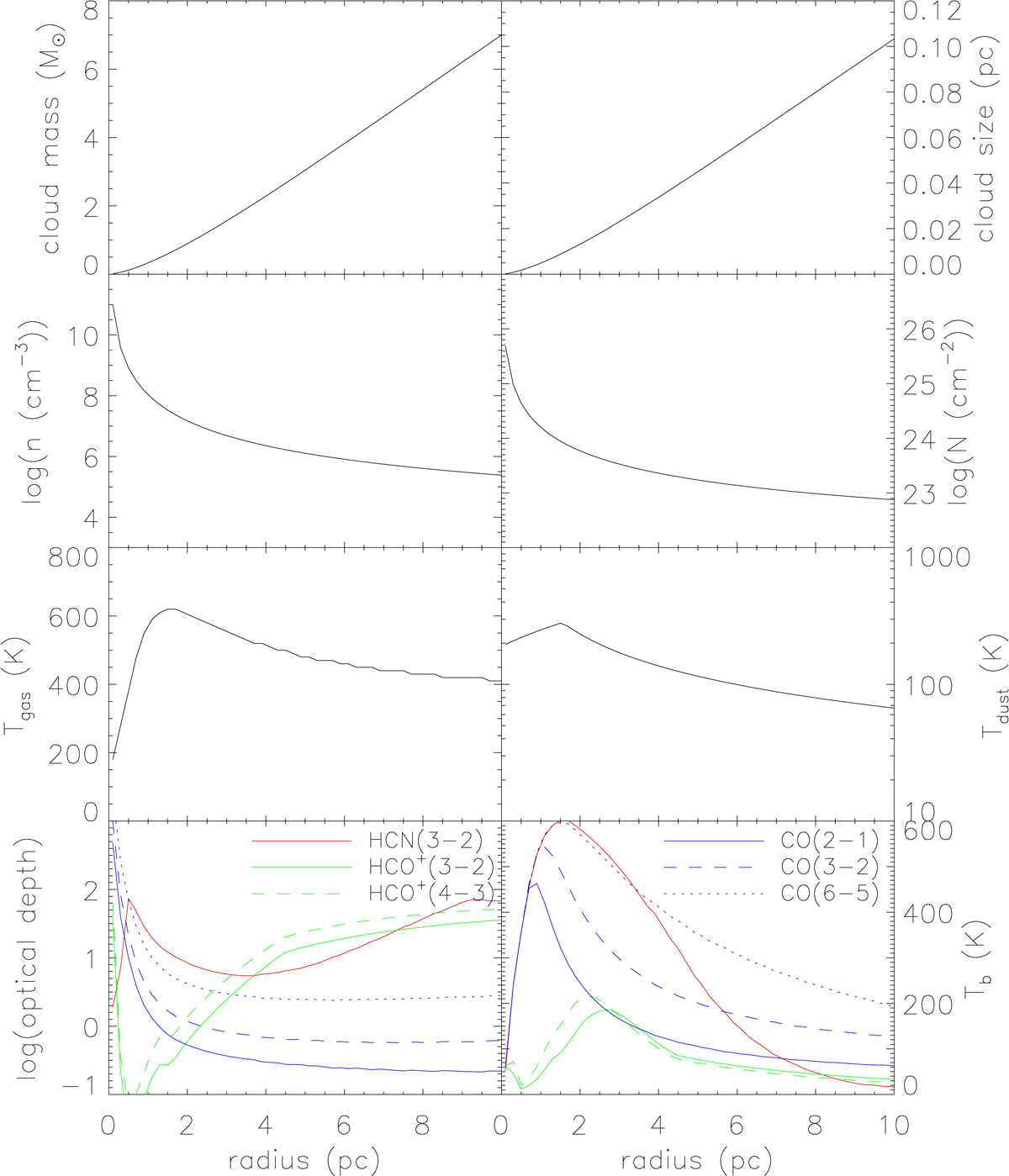

NGC 1068 Q = 30 analytical model of a turbulent clumpy gas disk (Sect. 2.2). Characteristics of individual model disk gas clouds across the disk at the time of interest. From upper left to lower right: cloud mass, size, density, H2 column density, gas and dust temperatures, optical depth, and brightness temperature. IR pumping is included for the HCN and HCO+ lines.
