Fig. 11


Download original image

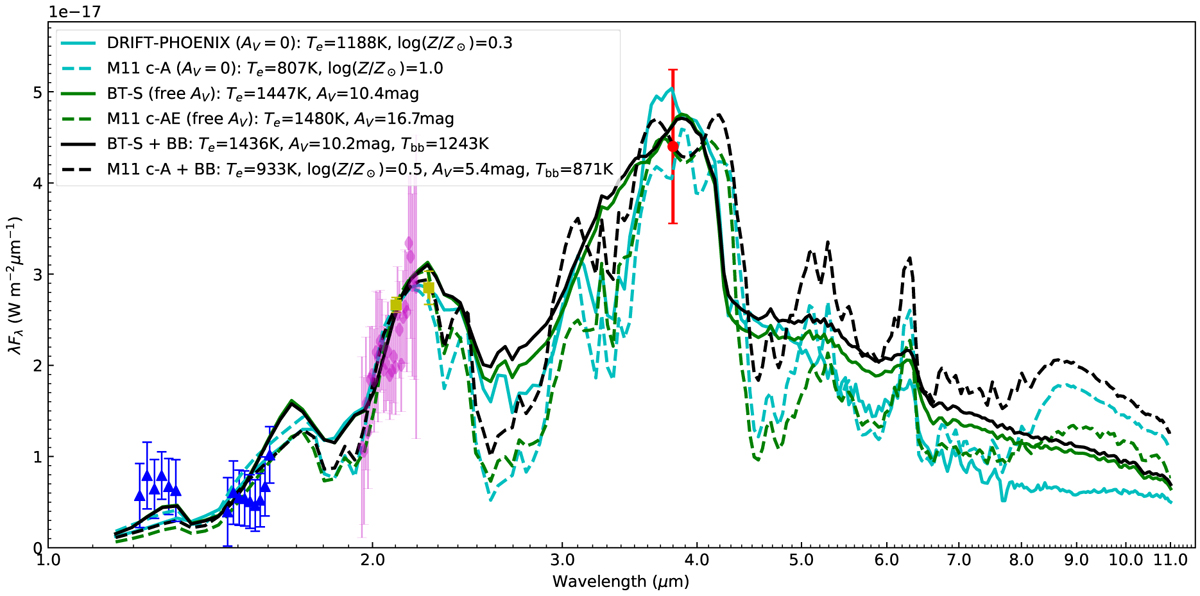

Spectrum of HD 95086 b compared to the most likely models retrieved by special with the highest-likelihood atmospheric and CPD models, extended up to 11 µm. Cyan curves show models with high metallicity but no extinction: DRIFT-PHOENIX (solid line) and Mil cloud-A (dashed line). Green curves show models with mid to high extinction: BT-SETTL (solid line) and Mil cloud-AE (dashed line). Black curves show models with both extinction and an extra blackbody component: BT-SETTL (solid line) and Mil cloud-A (dashed line). There is no atmospheric model+viscous CPD reported here as their best model does not represent a good enough fit to the data with respect to the other models.
