Fig. 4.
Download original image

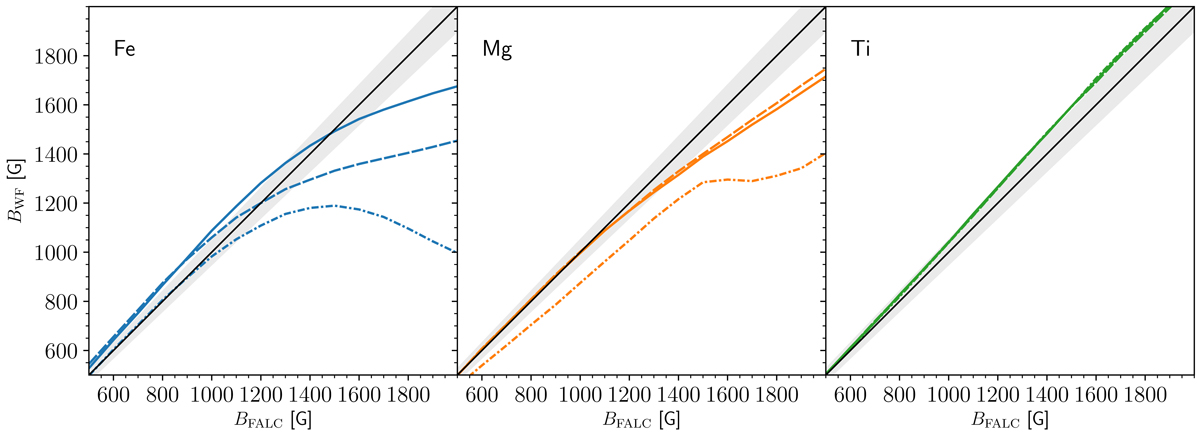

Comparison between the LOS magnetic field retrieved from the WFA and the LOS field strength of the model for each spectral line separately. Three regimes of vertical plasma flow are presented: static atmosphere (full line), smooth velocity gradient (dashed line), and the velocity discontinuity at logτ ≈ −3 (dotted line). Shadowed region corresponds to the 5% uncertainty.
