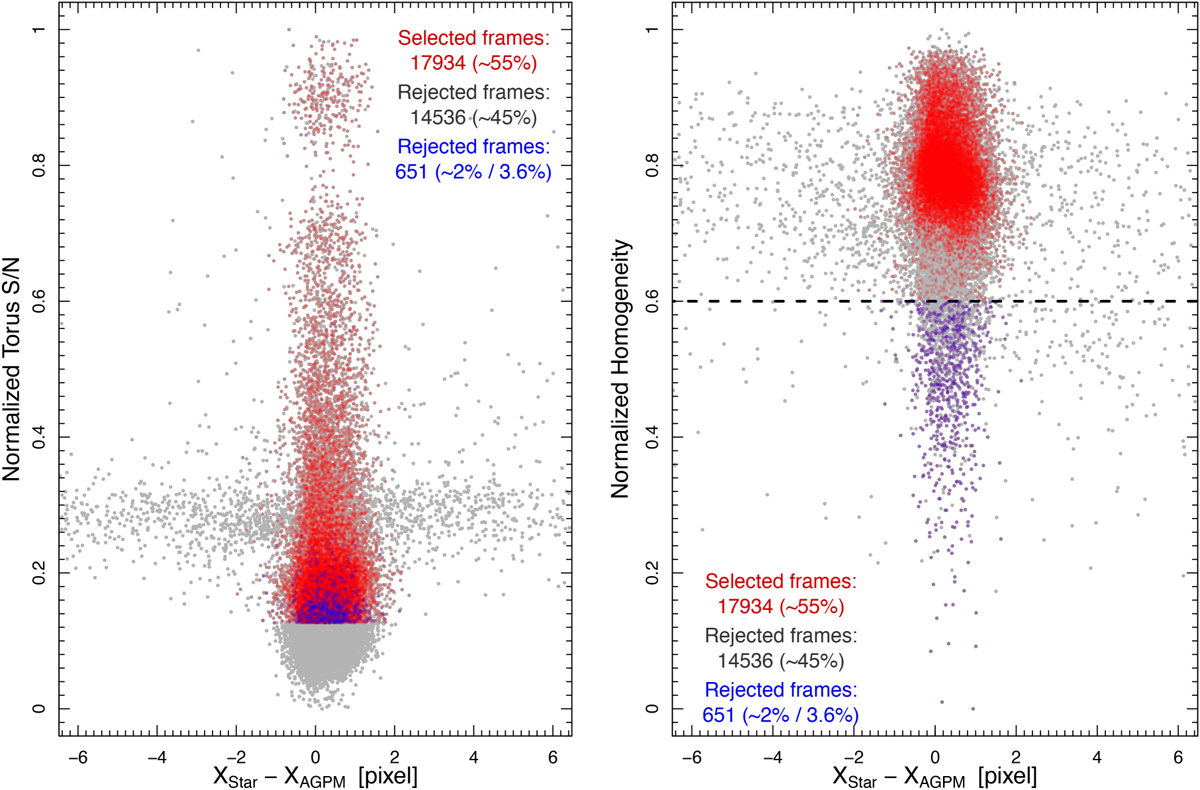

Fig. C.1


Download original image

Example of registration and selection of frames with and without considering the H parameter for HD 34282. Left: TorusS/N as a function of the difference between the star position and AGPM center along the X axis. Right: H asa function of the difference between the star position and AGPM center along the X axis. The red dots correspond to the frame selection presented in this work, using ϕ = 0.5 and ρ = 0.5 corresponding to ~ 55% of the frames, while the gray dots are the rejected frames. The blue dots are the additional rejected frames when H is also considered in the frame selection criterion. The number of blue dots corresponds to 3.6% and 2% of the first selection (red points) and the full dataset, respectively.
