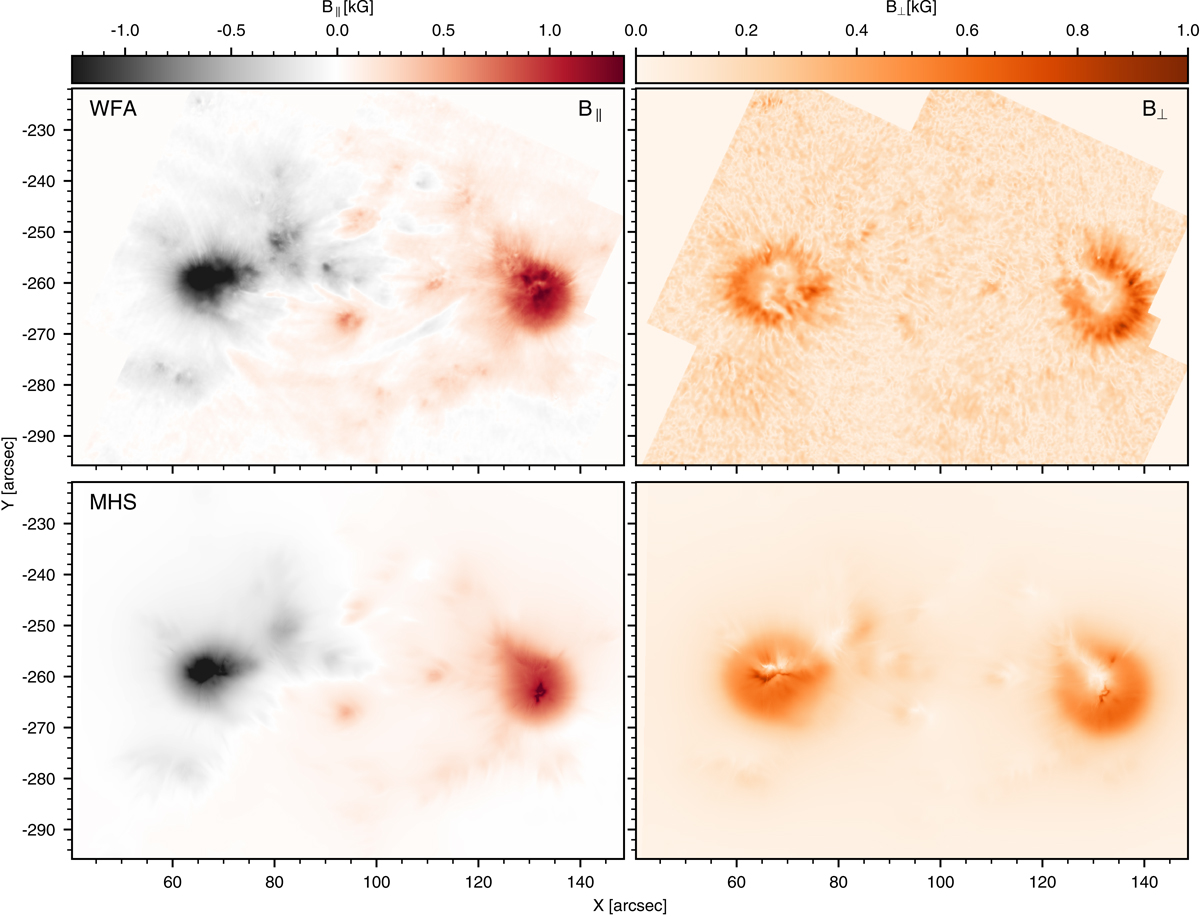

Magnetic field components B_∥ (left) and B_⊥ (right) from the WFA (top row) and from the MHS model (bottom row), averaged over the equivalent height range (as determined from the column mass) to which the WFA is expected to be sensitive. To allow a direct comparison between the WFA and MHS results, the panels in each column have been clipped to the same values: between [ − 1.35, 1.25] kG for B_∥ and [0, 1] kG for B_⊥. In addition, the B_∥ panels (left column) have been gamma-adjusted to improve visibility of weaker features.
