Fig. 6

Download original image

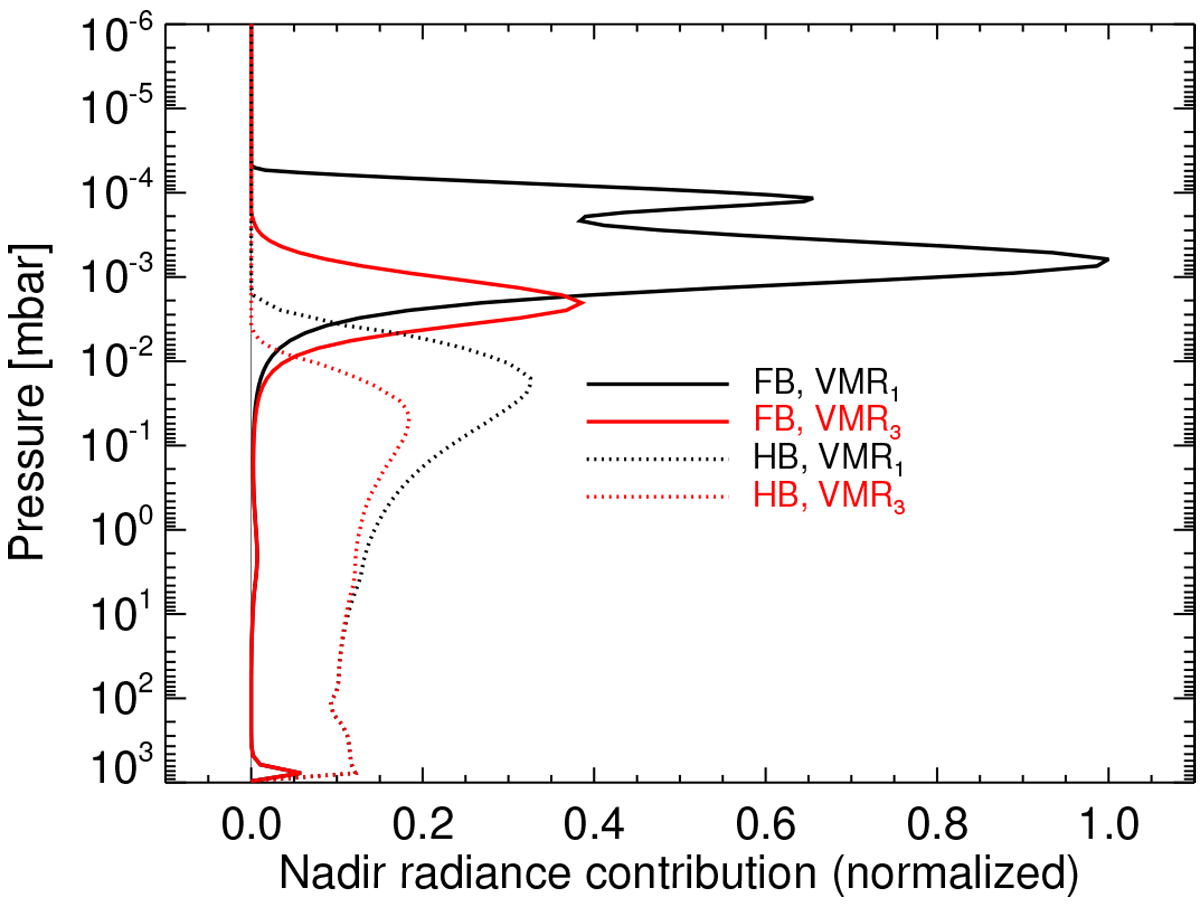

Contributions to the upward radiance of the fundamental v3 (FB, solid) and hot v3+v4 (HB, dashed) bands of CH4 at the different pressure levels for the VMR1 (black) and VMR3 (red) profiles. The p-T1 profile and the nominal non-LTE collisional rates of Table 1 were used in all cases. All values have been normalised to the maximum of the v3 band for VMR1.
