Fig. 9.

Download original image

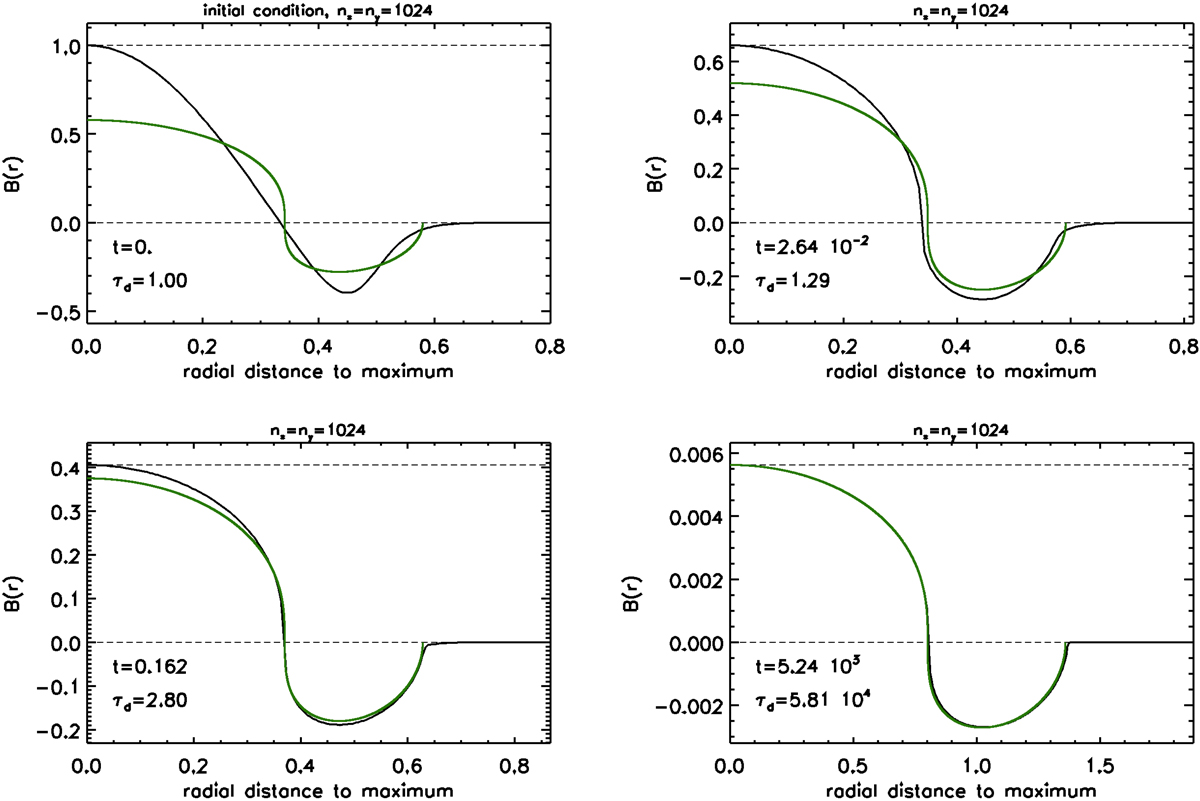

Four snapshots corresponding to the time evolution for initial condition with zero net flux, compact support, and a single internal null point, but otherwise of arbitrary shape. These snapshots are taken from the accompanying Animation 3, where the full time evolution can be seen. In both the figure and animation, the shape of the first harmonic corresponding to the unsigned flux of the solution toward the end of the evolution is superimposed as a green curve.
