Fig. A.3

Download original image

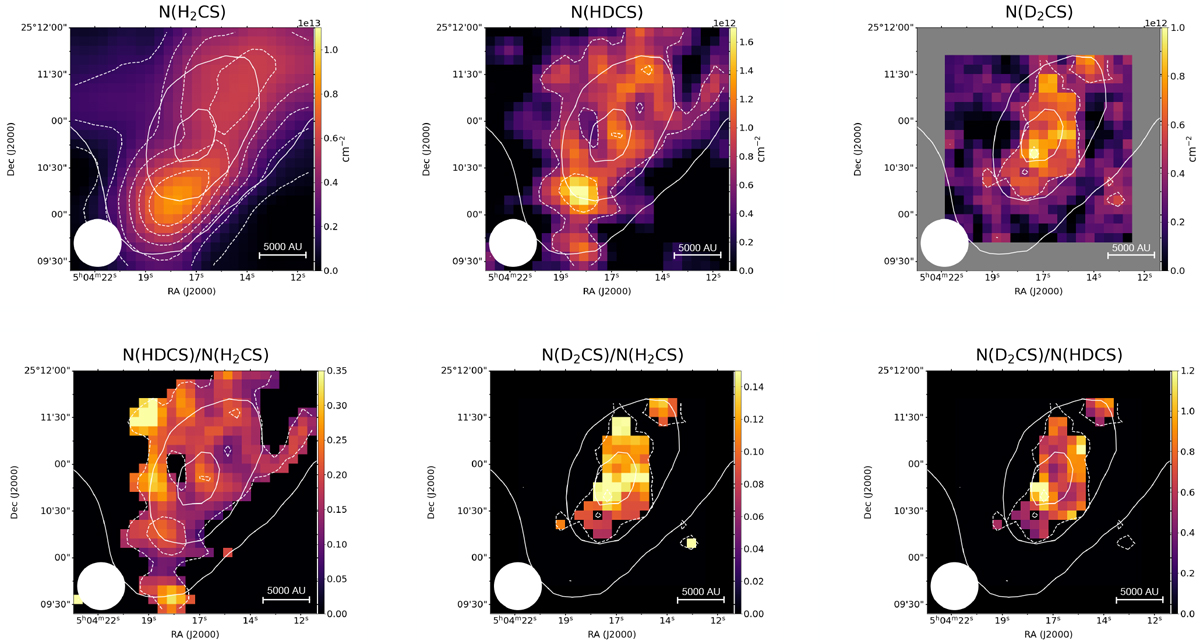

Column density and deuteration maps calculated assuming a constant Tex = 9.3 K for all species. Top panels: Column density maps of H2CS, HDCS, and D2CS towards L1544. The column density was computed assuming a constant Tex = 9.3 K for all species. The solid white contours are 30%, 60%, and 90% of the peak intensity of the N(H2) map of L1544 computed from Herschel/SPIRE data. The dotted white contours indicate the 3σ integrated emission contour with steps of 3σ (, rmsHDCS = 12 mK km s−1,
). Bottom panels: Deuteration maps of H2CS towards L1544. The column densities were computed using the same Tex for all species. The column density ratio was only computed in pixels where both molecules have been observed at least at a 3σ level. The solid white contours are 30%, 60%, and 90% of the peak intensity of the N(H2) map of L1544 computed from Herschel/SPIRE data. The dotted white contours indicate the 3σ integrated emission contour for HDCS in the left panel, and of D2CS in the central and right panel.
