Fig. 24.
Download original image

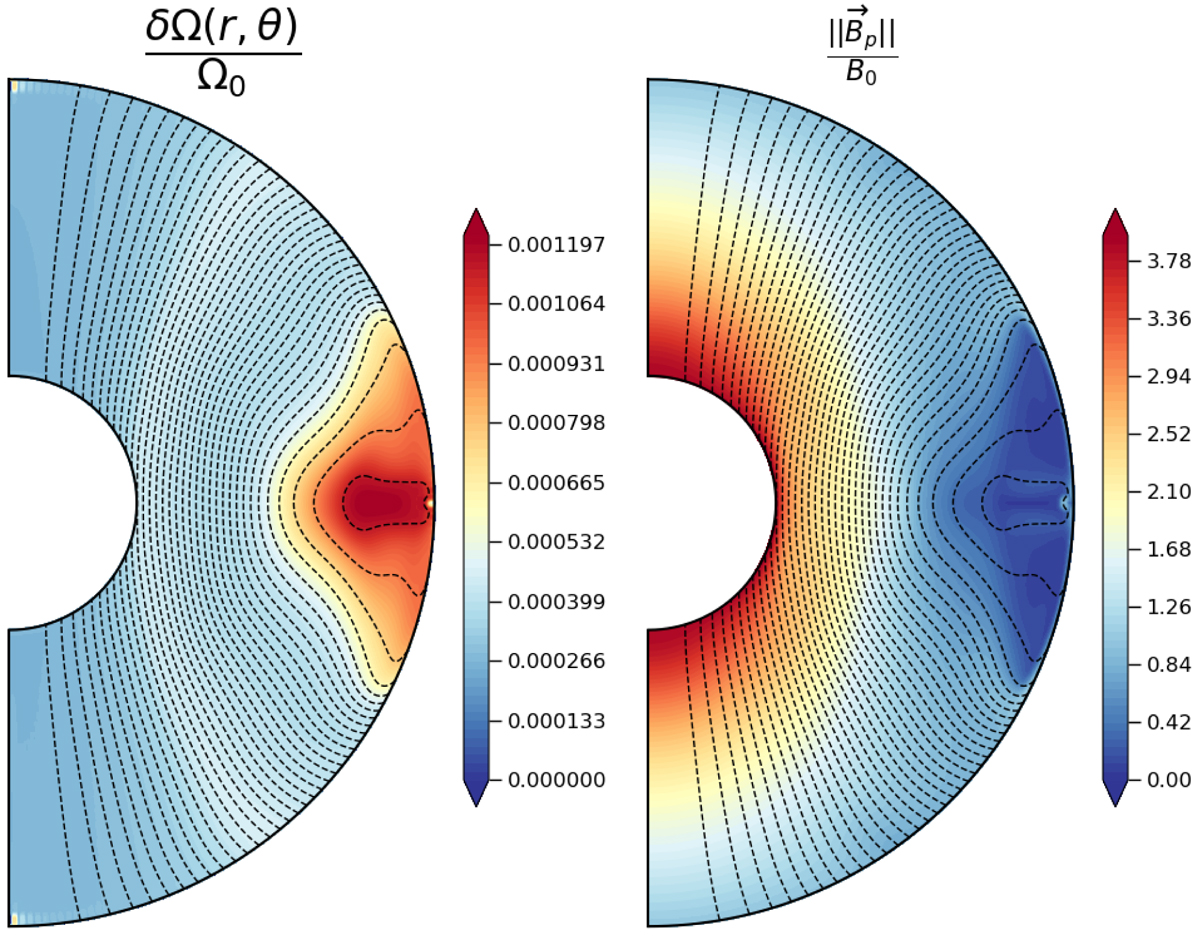

Meridional cuts of the normalised differential rotation δΩ/Ω0 (left panel) and of the normalised norm of the poloidal field ∥Bp∥/B0(right panel). In black are also plotted the poloidal field lines to highlight the DZ. The parameters are Rec = 2, Lu = 5 × 104, Pr(N0/Ω0)2 = 10−1, E = 10−5, Pm = 102, and ρi/ρ0 = 20.85 (run D38 of Table 1).
