Fig. 7.


Download original image

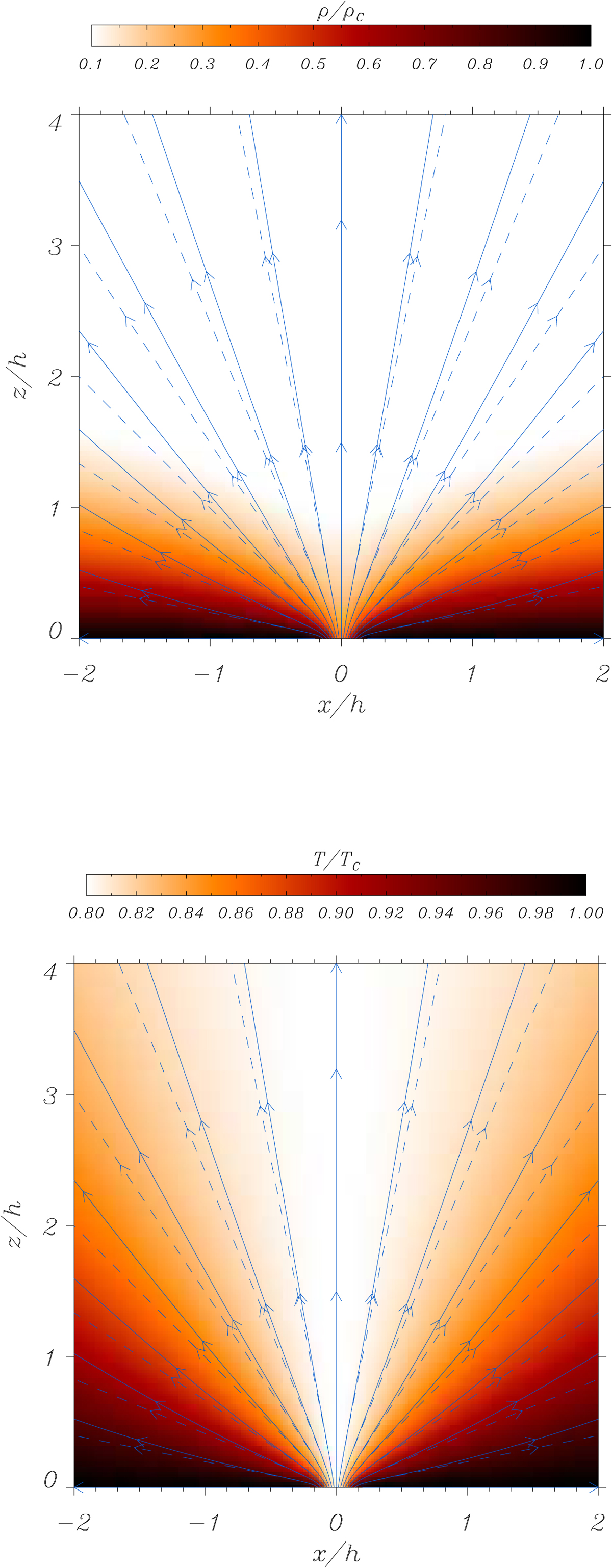

Density and temperature distribution for the CH model with β0 = 0.004. In this solution, pCH/pC = 1/4, TCH/TC = 0.8, x0/h = 0.2. The isothermal condition (along the field lines) is imposed in this model. The solid blue lines represent the magnetic field, and the dashed lines correspond to the potential magnetic field. The footpoints of the two ensembles of magnetic field lines are exactly the same, and a direct comparison is meaningful.
