Fig. 5.


Download original image

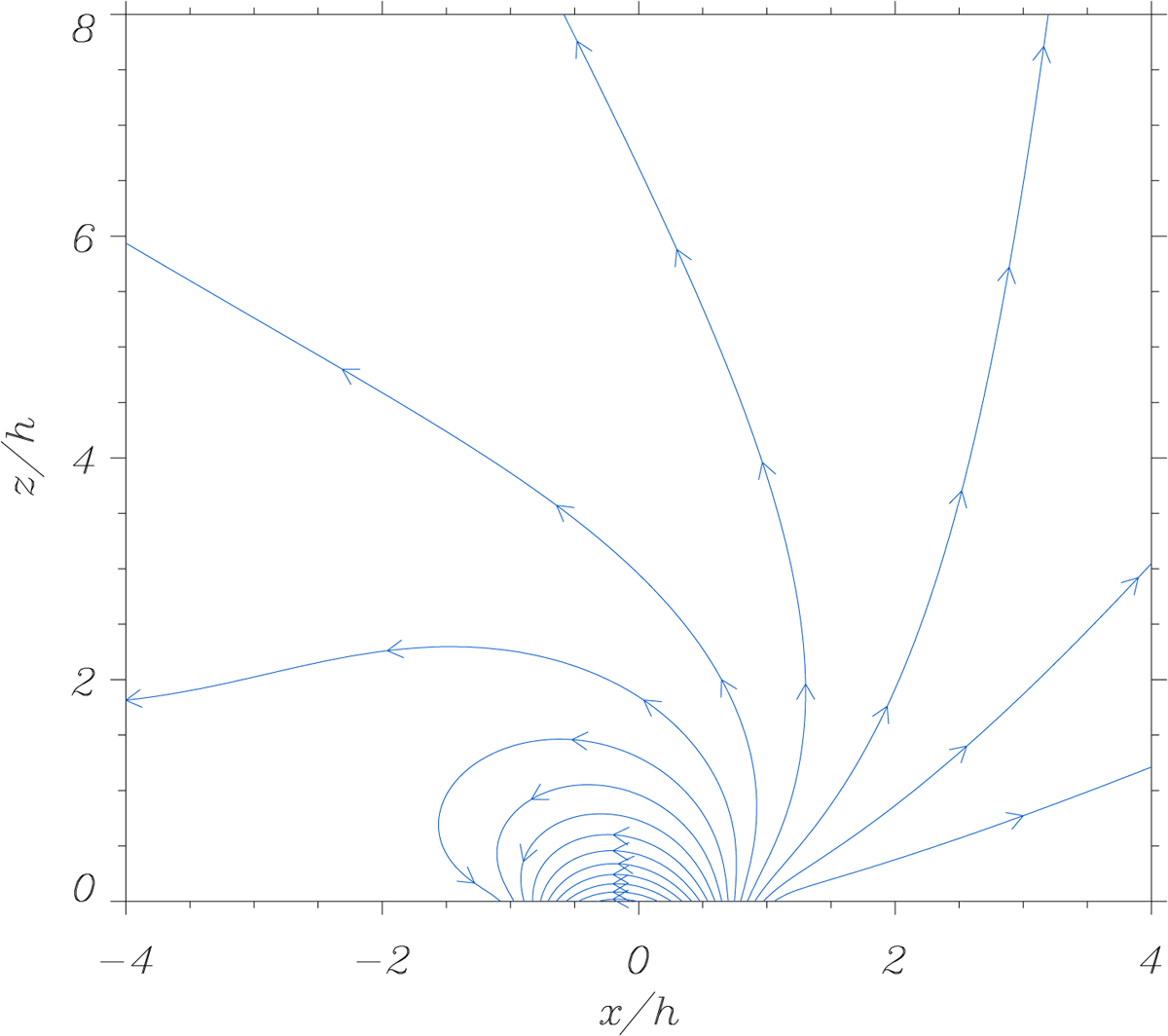

Magnetic field lines in a non-symmetric AR model. In this example, the two unipolar sources are located at x1 = 1/4h and x2 = −1/4h, where x0 = h. The source located at x = x1 is 1.2 times stronger than the source at x = x2. There is some spatial overlap in the sources, but this is allowed in our model because it is based on the superposition of individual solutions.
