Fig. 3

Download original image

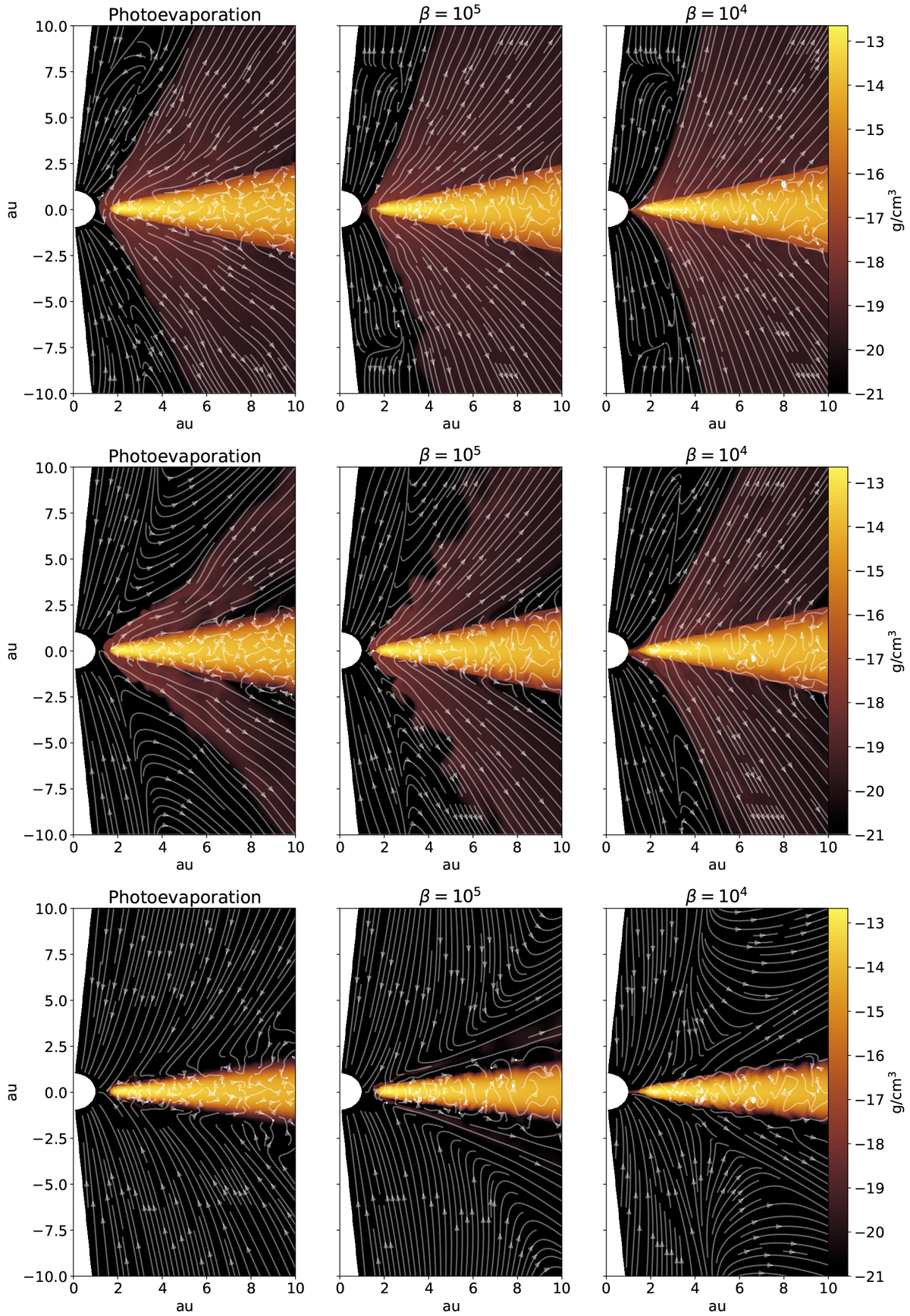

Dust density maps for the simulations phc2, b5c2 and b4c2 after 500 orbits at 1 au. Dust velocity streamlines are annotated by the white arrowed lines. The upper, center and lower three panels visualize the flow of grains with size 0.1 μm, 1 μm and 10 μm, respectively.
