Fig. 5.
Download original image

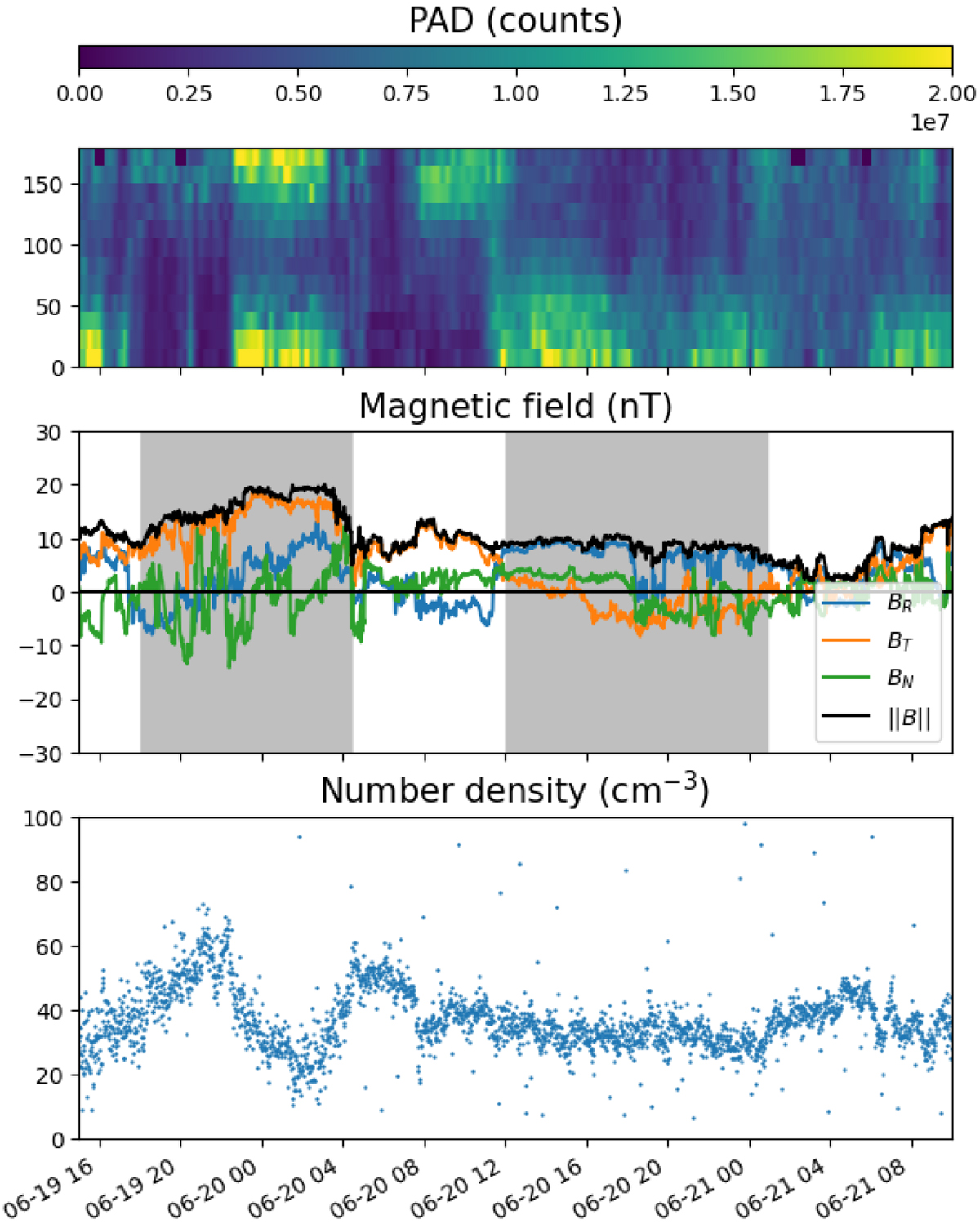

Two flux ropes structure identified in PSP data. Top panel: PAD from SPAN-e, in arbitrary count units, of electrons between 283.9 and 352.9 eV. Middle and bottom panels: structure of the magnetic field in the RTN frame and the plasma density (SWEAP/SPC). The two gray shaded area indicate the position of flux ropes with different connectivity visible in the PAD, uni-directional (right) and bidirectional electrons (left).
