Fig. 11


Download original image

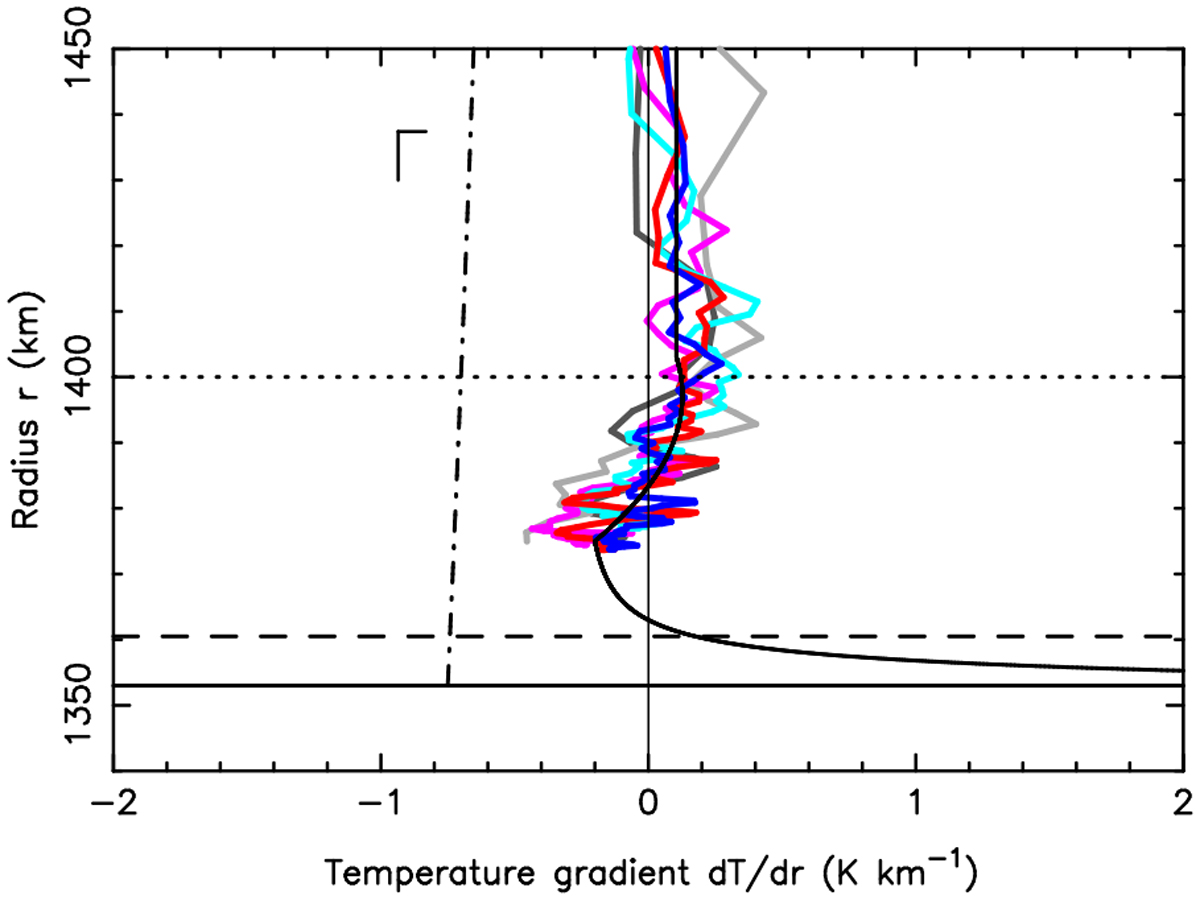

Temperature gradient corresponding to the upper panel of Fig. 10. The dot-dashed line is the dry adiabatic temperature gradient Γ= − g/cp, i.e. the limit of convective instability, where cp is the specific heat at constant pressure for N2 and g = GMT/r2 is the acceleration due to gravity.
